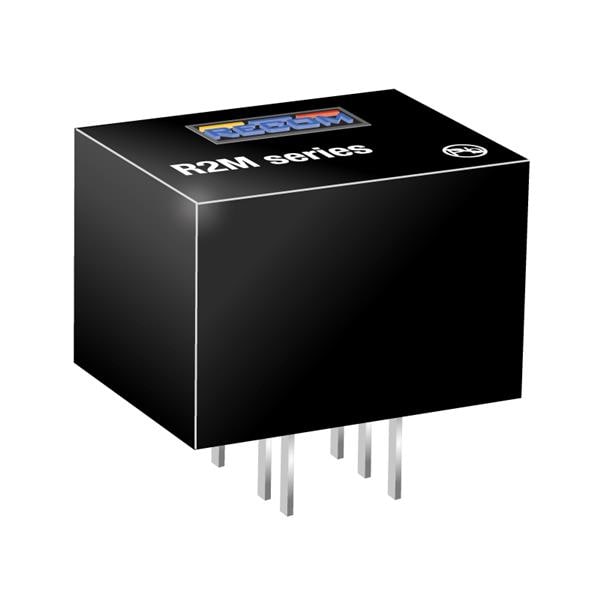

RECOM Power R2M-4815D Isolated 2W 18-75Vin +/-15Vout +/-67mA

Width: 9.1 mm (0.358 in)

Height: 10.2 mm (0.402 in)

Length: 13.2 mm (0.52 in)

Industry: Industrial

Dimensions: 13.2 mm x 9.1 mm x 10.2 mm

Output Power: 2 W

Input Voltage: +/- 18 VDC to +/- 75 VDC

Mounting Style: Through Hole

Isolation Voltage: 1.6 kV

Number of Outputs: 2 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 67 mA

Output Current-Channel 2: 67 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
