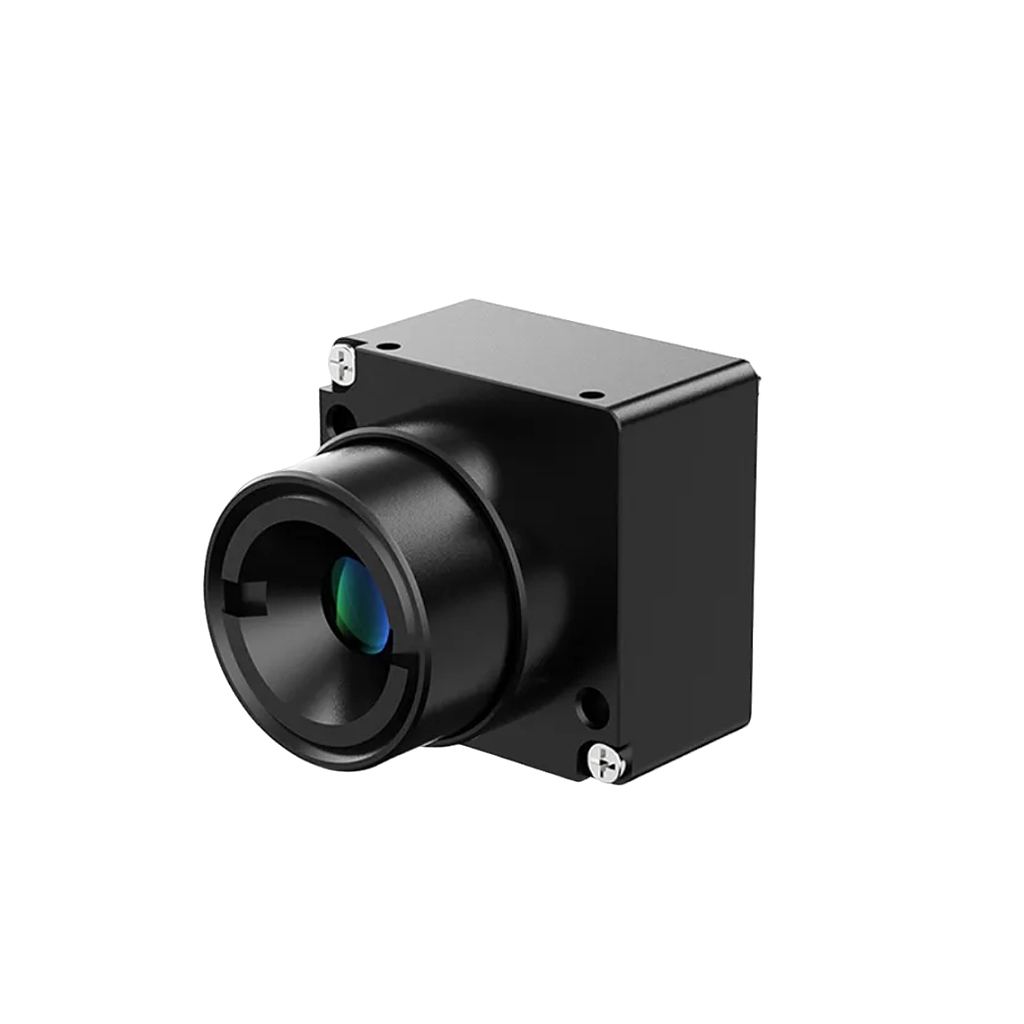

Raythink Turning L384 (Imagine) Uncooled Infrared Module (8~14μm; 384×288)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 384×288

Detector Frame Rate: 50Hz

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤50mK at 25°C (≤40mK, optional)

Image Adjustment

Brightness/Contrast Adjustment: Manual/Auto

Polarity: Black-hot/White-hot

Palette: Multiple types support

Reticle: Display/Blank/Move

Image Processing: Scene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancement, Shutterless

Mirroring: Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical): 3.8V DC / 1.8V / 3.3V

Typical Power Consumption at 25°C Without Extension: ≤0.35W

Interface

Digital Video: BT.656/BT.1120/LVCMOS

Serial Communication Interface: UART

Extension Components: USB 2.0 / Analog video

Temperature Measurement Performance

Measurement Range: For measurement series, -20°C~+550°C (+650°C customizable)

Measurement Accuracy: For measurement series, ±3°C or ±3% of reading (The greater shall prevail) at Ambient temperature of -20°C~+60°C±2°C (optional)

Measurement Tool: Temperature measurement series: Secondary analysis of points, lines, and areas

Physical Characteristics

Dimensions (Without lens and extension components): 18×18mm

Weight (3.2mm, without extension components): 3.5g

Lens Model: 2.88mm, 5.3mm, 10.4mm, 19mm, expandable to 45mm

Environment Adaptability

Operating Temperature: -40°C~+80°C (-20°C~60°C measurement)

Storage Temperature: -45℃～+85℃

Humidity: 5 ~ 95%, non-condensing
