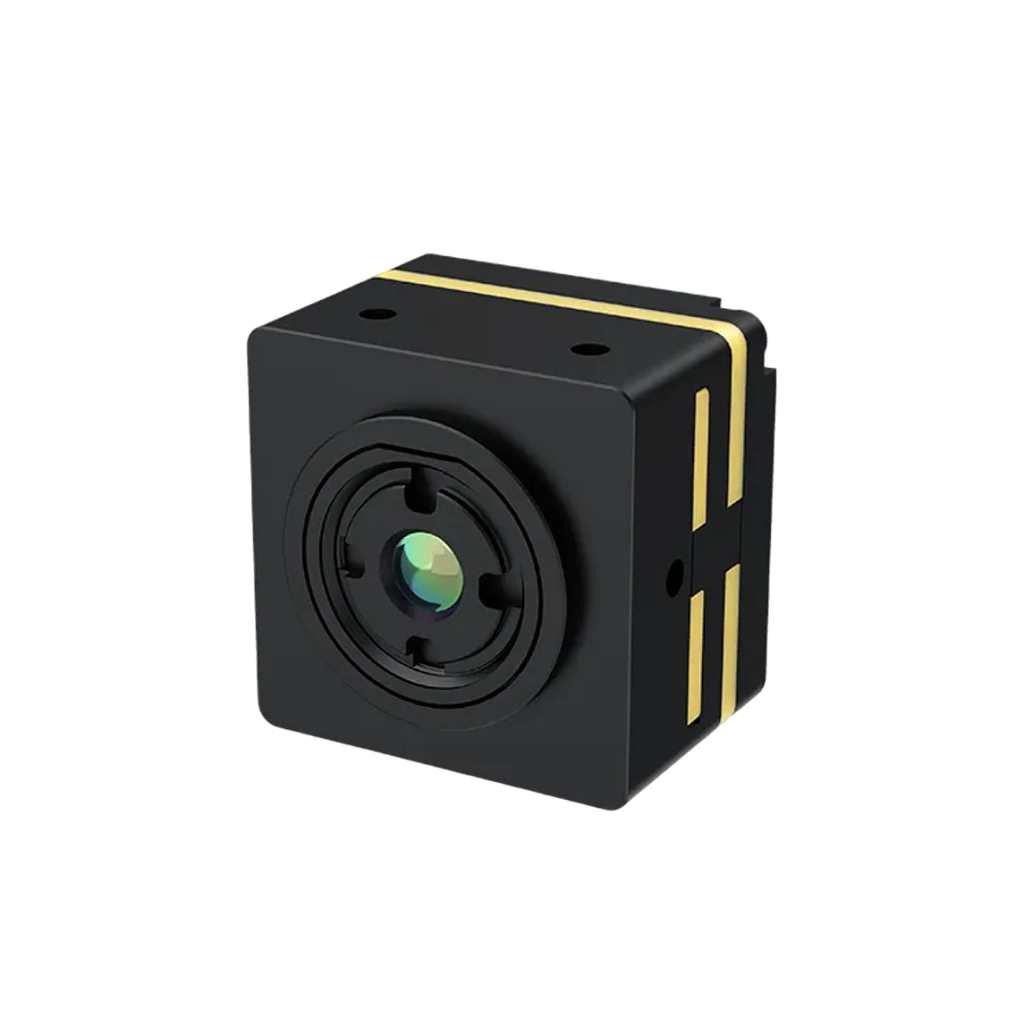

Raythink Turing L256 (Imaging) Uncooled Infrared Module (8~14μm; 256×192)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 256×192

Frame Rate: 50Hz

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤50mK@25°C

Image Adjustment

Brightness/Contrast Adjustment: Manual/Auto

Polarity: Black-hot/White-hot

Palette: It supports multiple types

Reticle: Display/Blank/Move

Image Processing: Digital filtering noise reduction/Digital detail enhancement

Mirroring: Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical): 3.8~5.2V DC/1.8V/3.3V

Typical Power Consumption at 25°C Without Extension: ≤0.35W

Interface

Digital Video: LVCMOS/BT.1120

Serial Communication Interface: UART

Extension Components: USB 2.0 / Analog video

Physical Characteristics

Dimensions (Without lens and extension components): 18×18mm

Weight (3.2mm, without extension components): About 8.7g

Lens Model: 2mm, 3.2mm, 7mm, 10mm, and 13mm

Environment Adaptability

Operating Temperature: -20℃～60℃

Storage Temperature: -45℃～+85℃

Humidity: 5 ~ 95%, non-condensing
