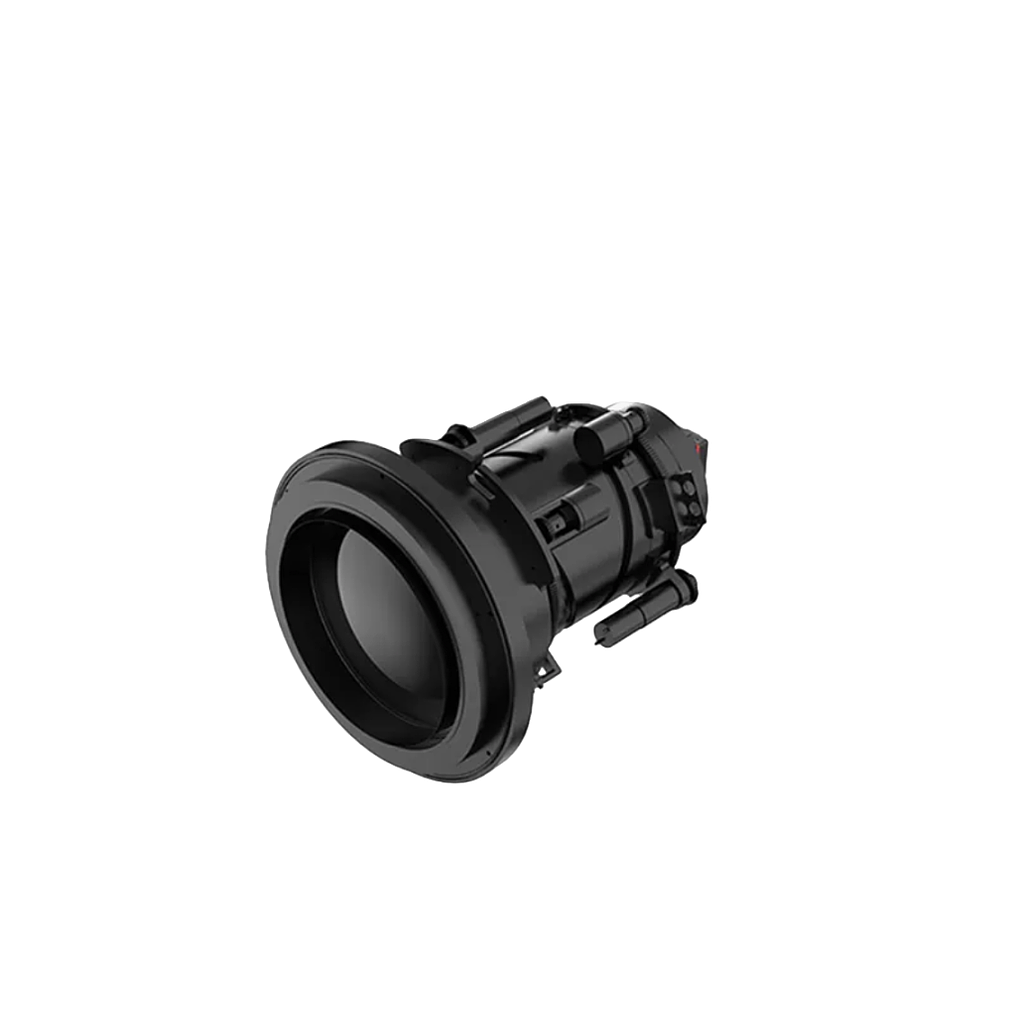

Raythink Turing F384 Uncooled Infrared Module (Temperature Measurement) (-20℃ ~ 650℃; 8~14μm)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 384×288

Detector Frame Rate: 50Hz

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤40mK at 25℃, F#1.0

Image Adjustment

Palette: Support (20 types)

Digital Zoom: 1.0~8.0× continuous zoom (step size: 0.1)

Image Processing: Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment

Mirroring: Horizontal/Vertical/Diagonal

Network Function

Network Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.

Platform Access: Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.

Simultaneous Previewed Videos: Up to 8 channels

User Management: Up to 20 users, 3 levels: administrator, operator and user

Browser: Google, Firefox, Edge, etc.

Lens

Lens Type: Athermalized/Prime electric focus/Continuous zoom

Focus Mode: Manual/Automatic

Electric Focusing: Support

Electric Zooming: Support

Digital

Power Supply Range: 5-24V DC (Recommended voltage of 12V DC)

Digital Video: LVCMOS/BT.601/BT.1120

Communication Interface: RS-232/UART

Interface

Analog Video: 1-channel PAL system

Environment Adaptability

Operating Temperature: -40℃～+70℃

Humidity: 5-95%, non-condensing

PTZ Function

Fire Warning: Supports fire point detection.

Thermal Imaging

Measurement Range: Not support

Measurement Accuracy: Not support
