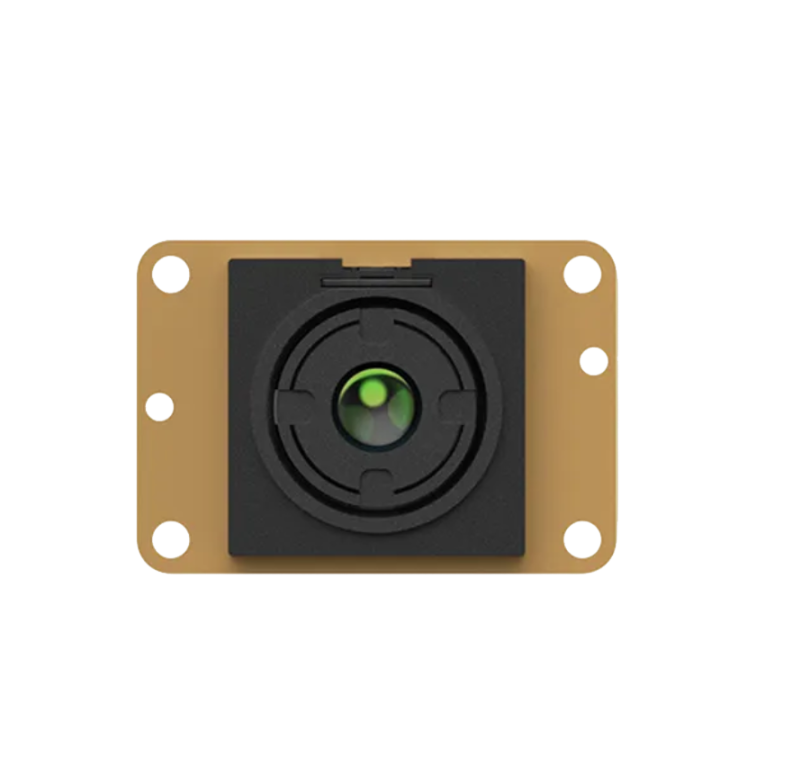

Raythink Turing C256 Uncooled Infrared Module (8~14μm; -20℃～+550℃)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 256×192

Detector Frame Rate: 25Hz

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤50mK at 25°C (≤40mK, optional)

Image Adjustment

Brightness/Contrast Adjustment: Manual/Auto

Polarity: Black-hot/White-hot

Palette: Multiple types support

Reticle: Display/Blank/Move

Image Processing: Digital filtering noise reduction, and digital detail enhancement

Mirroring: Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical): 3.8V~5.2V

Typical Power Consumption at 25°C Without Extension: ≤0.35W

Interface

Digital Video: CDS2/CDS3/LVCMOS

Serial Communication Interface: UART

Extension Components: Analog Video

Interface/Supporting

Direct Drive Solution: Compatible with SOC platforms such as HIS13516, HIS13519, NT98528, AR9201, AR9341, and CV28M33

Temperature Measurement Performance

Measurement Range: Temperature measurement series: -20℃～+550℃

Measurement Accuracy: For measurement series, ±3°C or ±3% of reading (The greater shall prevail) @Ambient temperature of -20°C~+60°C

Physical Characteristics

Dimensions (Without lens and extension components): 21×14.6mm

Weight (3.2mm, without extension components): ≤3.5g

Lens Model: 2mm, 3.2mm, 7mm, 10mm, 13mm

Environment Adaptability

Operating Temperature: -20℃～60℃

Storage Temperature: -45℃～+85℃

Humidity: 5 ~ 95%, non-condensing
