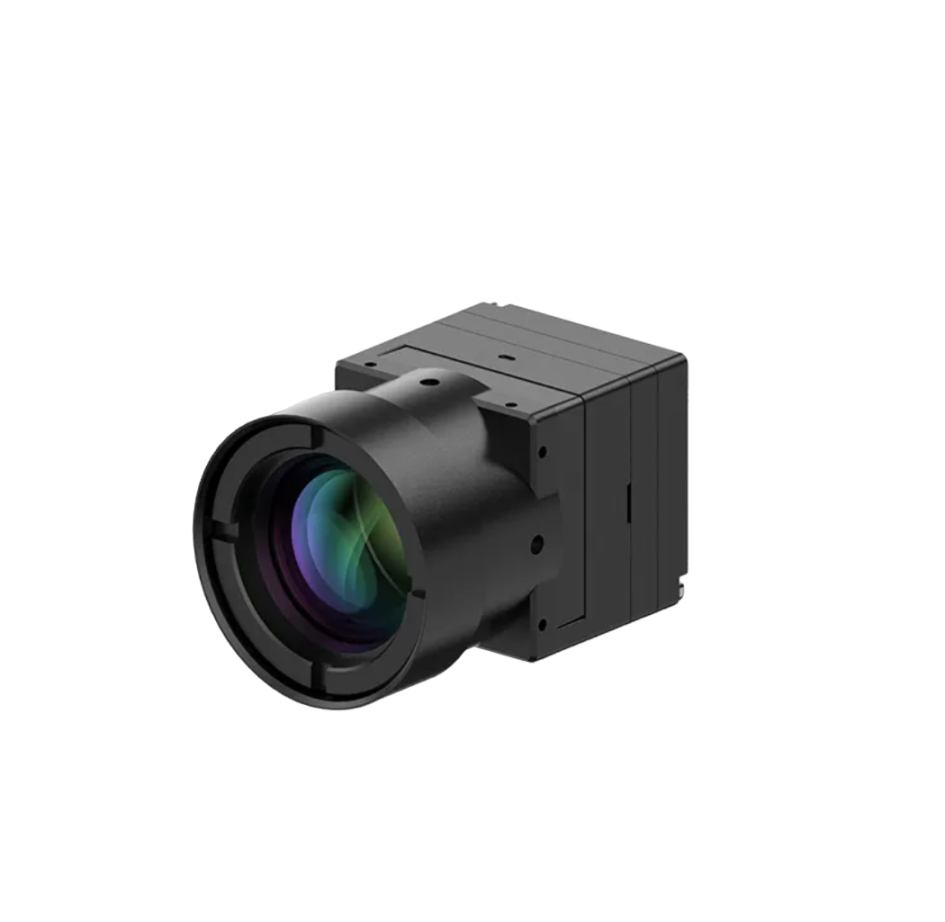

Raythink Turing A640H Uncooled Infrared Module (640×512; 8~14μm; -40°C~+80°C)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 640×512

Frame Rate: 50Hz (60Hz, optional)

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤40mK at 25℃, F#1.0

Image Adjustment

Polarity: Black-hot/White-hot

Palette: Support

Reticle: Display/Blank/Move

Digital Zoom: 1.0~8.0 continuous zoom (step size:0.1)

Image Processing: Scene-based non-uniformity correction, digital filtering noise reduction, and digital detail enhancement, Shutterless

Mirroring: Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical): 3.9~5V DC, 5~18V DC supported by user extension components

Typical Power Consumption at 25°C Without Extension: ≤0.7W

Power Protection: Overvoltage, undervoltage, and reverse connection supported by user extension components

Interface

Digital Video: BT.656/DVP/LVCMOS

Analog Video: 1-channel PAL system

Serial Communication Interface: RS232/UART (3.3V)

Extension Component: MIPI/USB/Analog video/BT.656/DVP

Physical Characteristics

Dimensions (Without lens and extension components): 26mm×26mm×19.8mm

Weight (3.2mm, without extension components): 21g±1g

Environment Adaptability

Operating Temperature: -40°C~+80°C

Storage Temperature: -45℃～+85℃

Humidity: 5 ~ 95%, non-condensing

Vibration: 6.06g, random vibration, all axes

Impact: 1000g@0.3ms, optical axis direction
