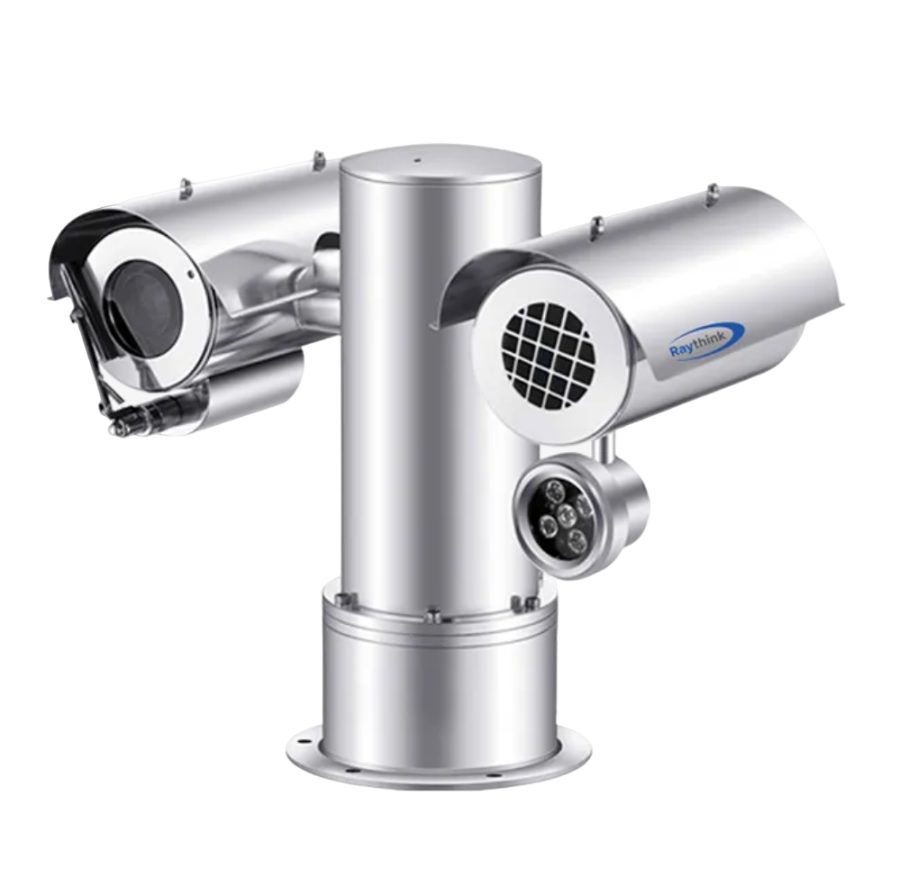

Raythink TE464G Explosion-Proof Gas Imaging PTZ (7~8.5μm; 17.5°×14°; -20℃~+550℃)

Thermal Imaging Parameters

Detector Type: VOx uncooled focal plane detector

Spectral Band: 7~8.5μm

Thermal Sensitivity: ≤20mK(@25°C,F#1.0)

Infrared Resolution: 640×512

Pixel Pitch: 12μm

Lens Focal Length: 25mm

Focus Mode: Athermalized prime lens/Electric focusing

FOV: 17.5°×14°

IFOV: 0.48mrad

Palettes: Black-hot/White-hot/Rainbow/Other palettes optional (20 modes in total)

Visible Light Parameters

Sensor: 1/1.8" 4-megapixel CMOS image sensor

Maximum Image Resolution: 2688×1520

Lens Focal Length: 6.4mm~128mm

Focus Mode: Automatic/Manual/Semi-automatic

FOV: Horizontal: 59.6°~3.5°

Gas Parameters

Gas Type: Methane, ethane, propane, butane, pentane, hexane, heptane, octane, ethylene oxide, propylene oxide, ethylene, propylene, 1-butene, methanol, ethanol, butanol, ethylene glycol, isopropanol,etc

PTZ Parameters

Horizontal Range: 360° horizontal continuous rotation

Vertical Range: -90°~+90°

Number of Presets: 256

Scan Mode: Preset point/Patrol scan/Pattern scan/Area scanning/Linear scanning

Temperature Measurement Function

Measurement Range: -20℃~+550℃

Measurement Accuracy: ±2°C or ±2%

Temperature Analysis: Supports global, point, line, and area temperature measurement rules as well as alarm linkage.

PTZ Function

Fire Warning: Supports fire point detection.

Intelligent Video Taking: Video taking triggered upon alarms or network failures

Intelligent Alarm: Detects abnormalities, including network cable disconnections, IP address conflicts, memory errors, unauthorized access, and burn warnings, and triggers an alarm in response.

Intelligent Detection: Supports intelligent analysis of events such as tripwire intrusions and regional intrusions.

Alarm Linkage: Video taking/Image capture/Email/Linked PTZ/Alarm output

System Interface

Power Supply: 85V～260V AC/24V DC 3A (optional)

Communication Interface: 1 RJ45 10M/100M adaptive Ethernet port; 1-channel RS485 interface, supporting Pelco protocol.

Alarm Interface: 1-channel alarm input, 1-channel alarm output

General Specifications

Operating Temperature and Humidity: -40°C～+60°C; <90%RH

Ingress Protection Rating: IP68

Power Consumption: ≤100W (thermostat activated)

Dimensions: 436×296×406 mmWeight: 27kg

Explosion-proof Mark: Exd IIC T6 Gb/Ex tD A21 IP68 T80℃
