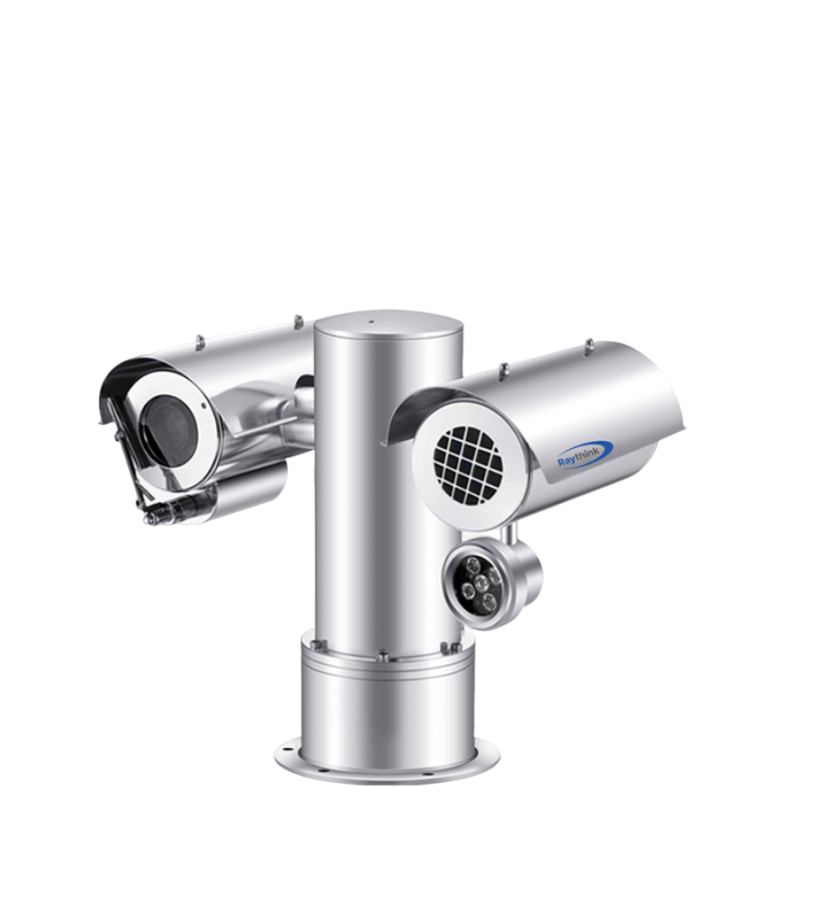

Raythink TE464 Dual-Spectrum Explosion-Proof PTZ Camera (8~14μm, 640×512, 25mm)

Thermal Module

Detector Type: VOx, uncooled FPA detectors

Spectral Range: 8~14μm

NETD: ≤40mK@25℃,F#1.0,25Hz

Resolution: 640×512

Pixel Pitch: 12μm

Focal Length: 25mm

Optical Module

Sensor: 4MP 1/1.8" Progressive Scan CMOS

Resolution: 2688×1520

IR distance: 6.5mm~130mm

PTZ

Pan: 360° continuous rotation

Tilt: -90°~+90°

Temperature Measurement

Temperature Measurement: Suport 4 temperature measure ment rules(fullframe, point, line, area)

Smart Function

Fire Detection: Support

VCA: Support Line Crossing&Intrusion detection

2-Way Audio: Support

Linkage Action: Video/ Snapshot/Email/Alarm output/sound and light alarm

System Interface

Power: AC85V~260V

Network: 1 RJ45 10M / 100M self-adaptive Ethernet port

Audio: 1 in/1 out

Storage: Micro SD memory（maximum 256G）

Reset: Support

Serial Port: 1 channel RS485, can support Pelco protocol

General

Work Environment: -40℃~+60℃；<90%RH

Protection: IP68

Weight: 27kg

Power Consumption: ≤100W

Dimenstion(mm): 436×296×406
