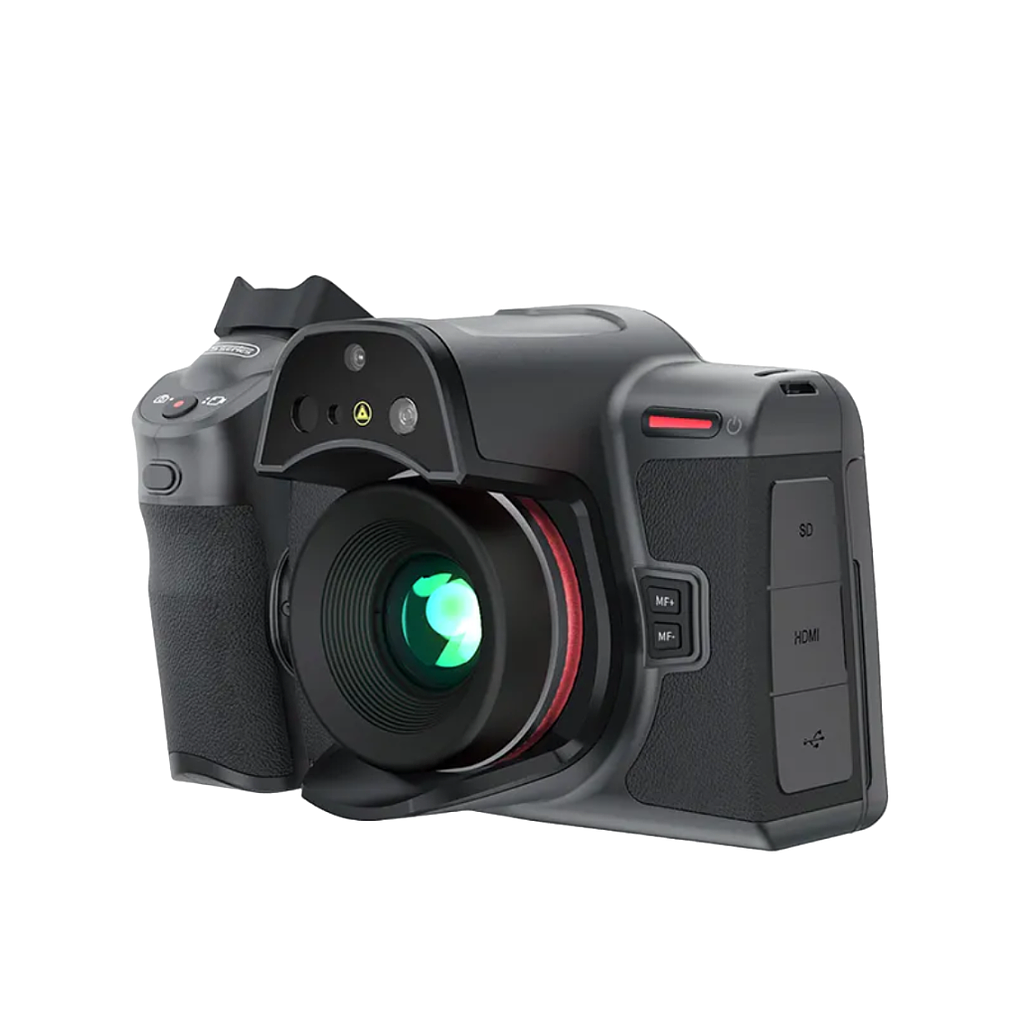

Raythink RS600 Flagship Thermal Camera (-20°C~+150°C, 100°C~650°C)

Detector Type: Uncooled infrared detector

Infrared Resolution: 640×512

Pixel Size: 12μm

Spectral Band: 7.5-14μm

Thermal Sensitivity (NETD): ＜25mK (25°C,F1.0)

Frame Rate: 25Hz

Lens Focal Length: Standard lens: 17.7mm; super telephoto lens: 60.9mm; telephoto lens: 31.5mm; wide-angle lens: 9.5mm; macro lens (0.2×): 13mm; super macro lens (0.4×): 14.8mm.

FOV: Standard lens: 25°×20°; super telephoto lens: 7°×5.6°; telephoto lens: 14°×11.2°; wide-angle lens: 45°×36°.

Spatial Resolution (IFOV): Standard lens: 0.68mrad; super telephoto lens: 0.2mrad; telephoto lens: 0.38mrad; wide-angle lens: 1.26mrad; Macro lens: One pixel corresponds to 60μm; super macro lens: One pixel corresponds to 30μm.

Focusing Mode: Electric micro focus, manual focusing, one-button center focus, automatic center focus, single-touch automatic focusing, laser-assisted focus

Measurement Range: -20°C~+150°C, 100°C~650°C; optional: 400°C~+1500°C

Measurement Accuracy: ±2°C or ±2% of readings, whichever is greater

Imaging Display

Display: 5.5-inch LCD touch screen, resolution 1920×1080

Visible light camera: 13 megapixels

Digital Zoom: 1× ~ 10 ×

Palettes: 19 options

Image Mode: Infrared, visible light, PIP, dual-spectrum fusion

Temperature Width Stretch: support

Measurement and Analysis

Analysis Functions on the Device: Support up to 25 movable points, lines, frames, circles and polygons, and up to 5 preset modes

Supporting Software: PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)

Laser Rangefinding: Support

Area Measurement: Support

Hygrothermograph: Support

Position: Support

Temperature Difference Analysis: Support

Trend Analysis: Supports temperature trend recording and analysis.

Image Freezing: Support

Analysis Report: PDF format. Support editing and template importing on the PC client.

Image Storage

Standard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.

Text Notes: support

Voice Annotation: support

Video Functions

Radiation Infrared Video Recording: Support compressed full radiation video recording (.irv), up to 15Hz video recording

Non-radiation Infrared or Visible Light Video Recording: Standard MP4 video recording

System Functions

Intelligent Routine Inspection: Support. General task package import and editing, standard and automatic naming of images

Communication Protocol: Wi-Fi, Bluetooth, USB

Others

Battery: 9000mAh lithium-ion battery, field-replaceable, fast charging

Charging Mode: USB Type-C or desktop charger

Battery Life: Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions)

Interface: USB3.0 Type-C, SD card, SIM card, Mini HDMI

Tripod Socket: UNC 1/4-20 interface for tripod

Operating Temperature: -15°C~+50°C

Operating Humidity: 10%~95% (non-condensing)

Storage Temperature: -40°C~+70°C

Ingress Protection Rating: IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions: About 1.3kg (with battery), 278×116×113mm

Packing List: Thermal camera, manual, quick operation guide, data download card, , multi-country adapter,, USB data cable, lithium-ion battery×3, portable bag, charging cradle, HDMI cable, hand strap, backpack strap, SD card, charging stand, standard lens.
