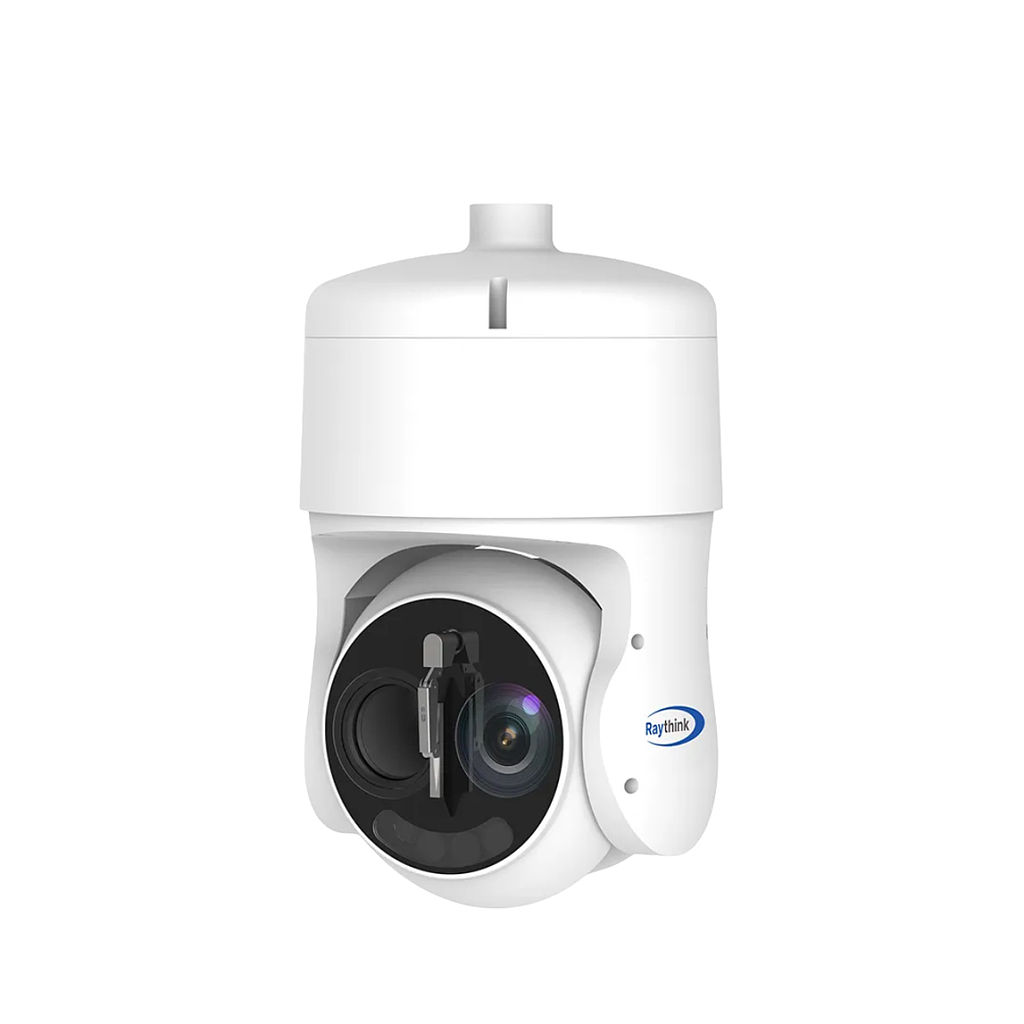

Raythink PD464T Dual-Spectrum Speed Dome Camera

Thermal Module

Detector Type: VOx, uncooled FPA detectors

Spectral Range: 8~14μm

NETD: ≤40mK(@25°C,F#1.0,25Hz)

Resolution: 640x512

Pixel Pitch: 12μm

Focal Length: 9.1mm/13mm/25mm/50mm Athermalized/Motorized lens

Optical Module

Sensor: 4MP 1/1.8" Progressive Scan CMOS

Resolution: 2560×1920

Focal Length: 6.5~240mm, 37x

IR distance: 200m

Image Function

Bi-Spectrum Image Fusion: Support

PTZ

Pan: 360° continuous，0.1°~200°/s

Tilt: -27°~+90°，0.1°~120°/s

Preset: 1024

Scan mode: Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan

Wiper: auto-wiper

Temperature Measurement

Temperature Range: -20℃~+550℃

Temperature Accuracy: ±2℃ or ±2%

Temperature Measurement: Suport 4 temperature measure ment rules(fullframe, point, line, area)

Smart Function

Fire Detection: Support

VCA: Support Line Crossing&Intrusion detection with AI human/Vehicle recognition

2-Way Audio: Support

Linkage Action: Video/ Snapshot/Email/Alarm output

System Interface

Power: DC 24V±25%

Network: 1 RJ45 10M / 100M self-adaptive Ethernet port

Audio: 1 in/1 out

Alarm: 7 in/2 out

Storage: Micro SD memory（maximum 256G）

Reset: Support

Serial Port: 1 channel RS485, can support Pelco protocol

General

Work Environment: -40℃~+70℃；<95%RH

Protection: IP66

Power Consumption: ≤8W

Dimenstion(mm): Φ250×413

Weight: ≤8kg
