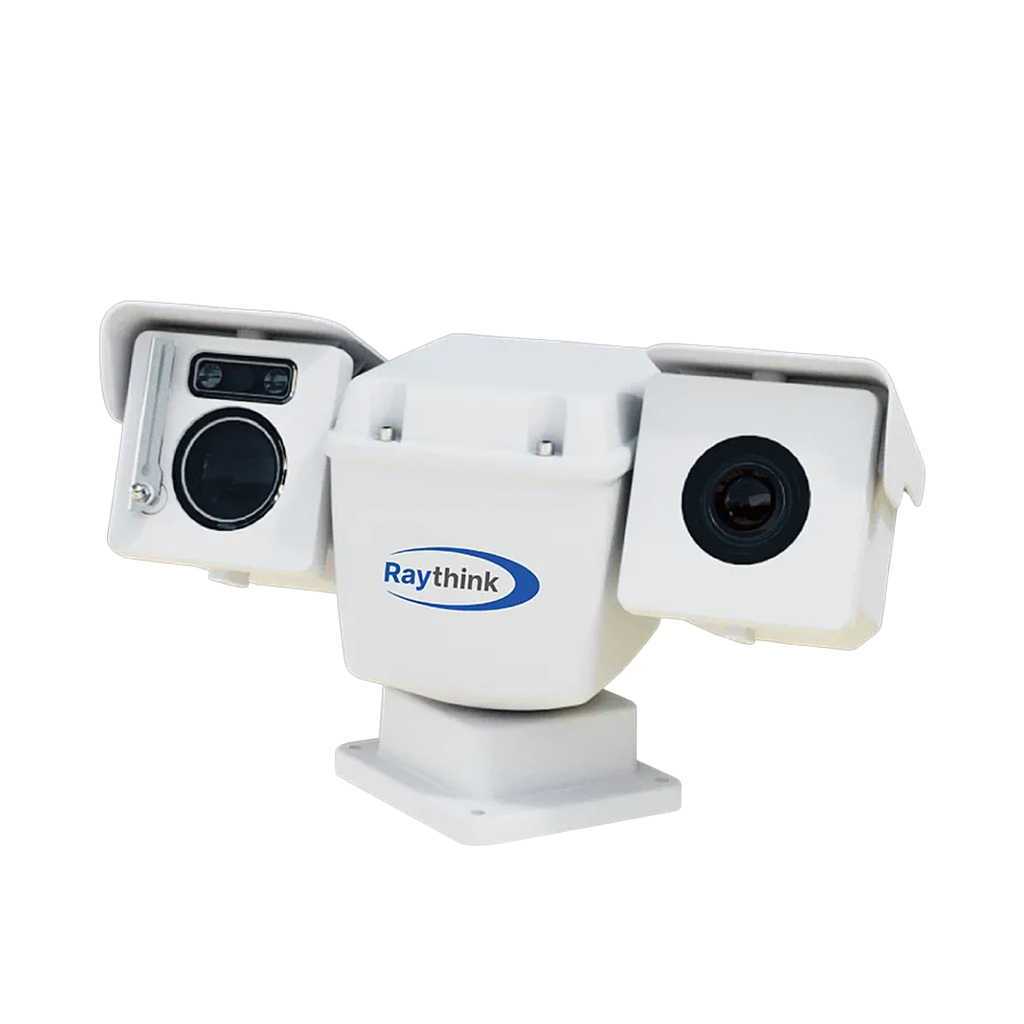

Raythink PC264T1 Dual-Spectrum PTZ Camera (8~14μm; 640×512)

Thermal Module

Detector Type: VOx, uncooled FPA detectors

Spectral Range: 8~14μm

NETD: ≤40mK(@25°C,F#1.0,25Hz)

Resolution: 640×512

Pixel Pitch: 12μm

Focal Length: 9.1mm/13mm/19mm/25mm/35mm Athermalized/Motorized lens

Optical Module

Sensor: 4MP 1/1.8" Progressive Scan CMOS

Resolution: 2688×1520

Focal Length: 6.5~130mm, 20x

Image Function

Picture in Picture: Support

PTZ

Pan: 360° continuous，0.1°~100°/s

Tilt: -90°~+90°，0.1°~60°/s

Preset: 256

Scan mode: Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan

Wiper: wiper

Temperature Measurement

Temperature Range: -20℃~+550℃

Temperature Accuracy: ±2℃ or ±2%

Temperature Measurement: Suport 4 temperature measure ment rules(fullframe, point, line, area)

Smart Function

Fire Detection: Support

VCA: Support Line Crossing&Intrusion detection

2-Way Audio: Support

Linkage Action: Video/ Snapshot/Email/Alarm output/sound and light alarm

System Interface

Power: DC 12V±25%

Network: 1 RJ45 10M / 100M self-adaptive Ethernet port

Audio: 1 in/1 out

Alarm: 2 in/2 out

Storage: Micro SD memory（maximum 256G）

Reset: Support

Serial Port: 1 channel RS485, can support Pelco protocol

General

Wor Environment: -40℃~+70℃；<90%RH

Protection: IP66

Power Consumption: max. 30w

Dimenstion(mm): 358×166×203

Weight: ≤5kg
