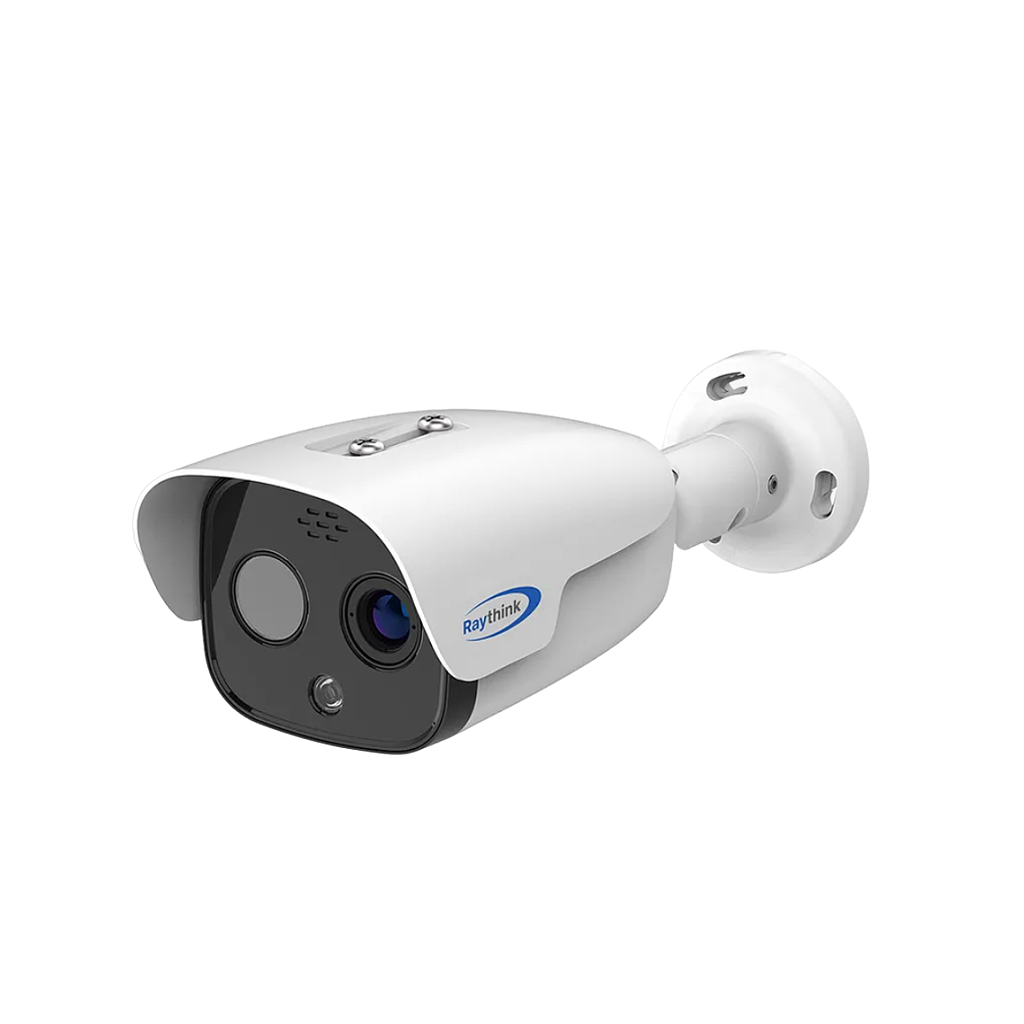

Raythink FC465T Dual-Spectrum Bullet Camera

Thermal Module

Detector Type: VOx, uncooled FPA detectors

Spectral Range: 8~14μm

NETD: ≤40mK(@25°C,F#1.0,25Hz)

Resolution: 640x512

Pixel Pitch: 12μm

Focal Length: 9.1mm/13mm/19mm/25mm/35mm

Optical Module

Sensor: 5MP 1/2.8" Progressive Scan CMOS

Resolution: 2560×1920

Focal Length: 4mm/6mm/6mm/12mm/12mm

IR distance: 40m

Image Function

Bi-Spectrum Image Fusion: Support

Temperature Measurement

Temperature Range: -20℃~+550℃

Temperature Accuracy: ±2℃ or ±2%

Temperature Measurement: Suport 4 temperature measure ment rules (fullframe, point, line, area)

Smart Function

Fire Detection: Support

VCA: Support Line Crossing & Intrusion detection

2-Way Audio: Support

Linkage Action: Video/ Snapshot/Email/Alarm output/sound and light alarm

System Interface

Power: DC 12V±25%/POE(802.3at)

Network: 1 RJ45 10M / 100M self-adaptive Ethernet port

Audio: 1 in/1 out

Alarm: 2 in/1 out

Storage: Micro SD memory（maximum 256G）

Reset: Support

Serial Port: 1 channel RS485, can support Pelco protocol

General

Work Environment: -40℃~+70℃；<95%RH

Protection: IP66

Power Consumption: ≤8W

Dimenstion(mm): 319.5×121.5×103.6

Weight: ≤1.8kg
