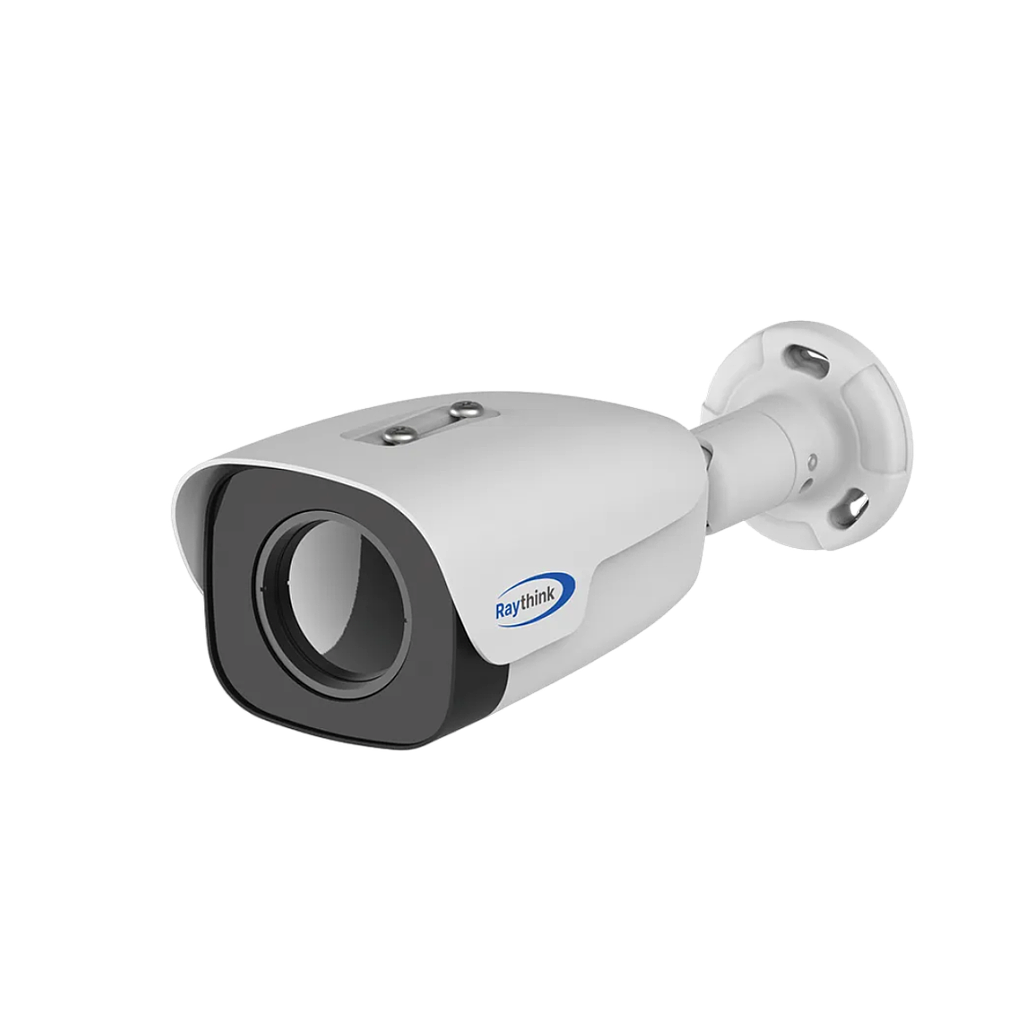

Raythink FC460A Observation Thermal Bullet Camera (8~14μm; 640×512)

Thermal Module

Detector Type: VOx, uncooled FPA detectors

Spectral Range: 8~14μm

NETD: ≤40mK(@25°C,F#1.0,25Hz)

Resolution: 640×512

Pixel Pitch: 12μm

Focal Length: 35mm/55mm

Smart Function

Fire Detection: Support

VCA: Support Line Crossing & Intrusion detection

2-Way Audio: Support

Linkage Action: Video/ Snapshot/Email/Alarm output/sound and light alarm

System Interface

Power: DC 12V±25%/POE(802.3at)

Network: 1 RJ45 10M / 100M self-adaptive Ethernet port

Audio: 1 in/1 out

Storage: Micro SD memory（maximum 256G）

Reset: Support

Serial Port: 1 channel RS485, can support Pelco protocol

Analog: 1 BNC

General

Work Environment: -40℃~+70℃；<95%RH

Protection: IP66

Power Consumption: ≤4W

Dimenstion(mm): 334.7×121.5×104.4

Weight: ≤1.5kg
