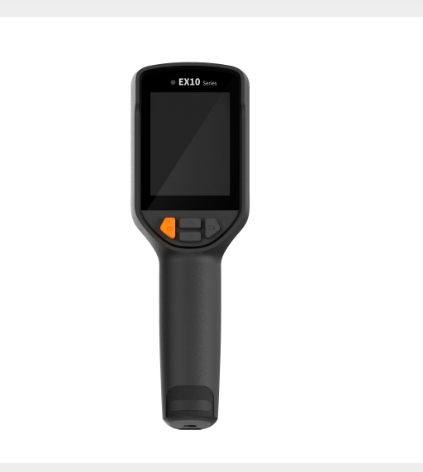

Raythink EX10 Handheld Thermal Camera (-20~150℃; 100~550℃)

Thermal Imaging

Infrared Resolution: 160×120

Super Resolution: 320×240

Spectral Band: 8-14μm

NETD: 40mK

Frame Rate: 25 Hz

Lens Focal Length: 2.6mm

FOV:  40°×30°

IFOV: 4.62 mrad

Focusing Mode: Fixed focus

Minimum Imaging Distance: 11cm

Measurement Range: -20~150℃; 100~550℃; auto switching

Imaging Display

Display: 2.8-inch; 240×320 resolution

Palettes: 6 options

Image Mode: Infrared

Temperature Width Stretch: Automatic/Manual

Image Storage

Storage Medium: 8GB Internal Memory

Image File Format: JPEG

Video Recording and Transmission

Communication Interface: USB2.0

Video Recording: Standard MP4 video recording

Video Resolution: 240×320

Video Transmission: UVC (with temperature data)

Measurement and Analysis

Measurement Accuracy: ±2°C or ±2% of readings (whichever is greater)

Measurement Unit: Celsius degree, Fahrenheit degree, Kelvin

Temperature Alarm: Supports (high and low temperature alarms)

Automatic lmage Capture Upon Alarm: Supports (with temperature data)

Color Alarm (lsotherm): Above / Below / Between — The image within the isotherm range is displayed in pseudo color, while other areas are shown in white-hot mode

Analysis Functions on the Device: Central point / Highest temperature point / Lowest temperature point / 3 custom points

Analysis Report: PDF forma(requiring support from PC analysis software)

Supporting Software: PC (Infrared Analysis Software)

System Functions

Connection Mode: USB2.0 Type-C

Laser Pointer: Not support

Quick Start: support

WiFi: Not support

Others

Battery: 2750mAh lithium-ion battery

Charging Time: Above 90% within 75 minutes

Charging Mode: USB2.0; Type-C cable charging; Not support fast charging

Battery Life: ≥10 hours

Tripod Socket: Support

Operating Temperature: -20°C~ 50°C

Storage Temperature: -40°C~ 70°C

Extemal Interface: Type-C USB2.0 Tripod socket

Ingress Protection Rating: IP54

Shock and Vibration

shock: 25G (IEC60068-2-27); vibration: 2.5G (IEC60068-2-6); 2-meter drop

Weight and Dimensions: 257g±10g (including battery), 206.9×67×81.5mm
