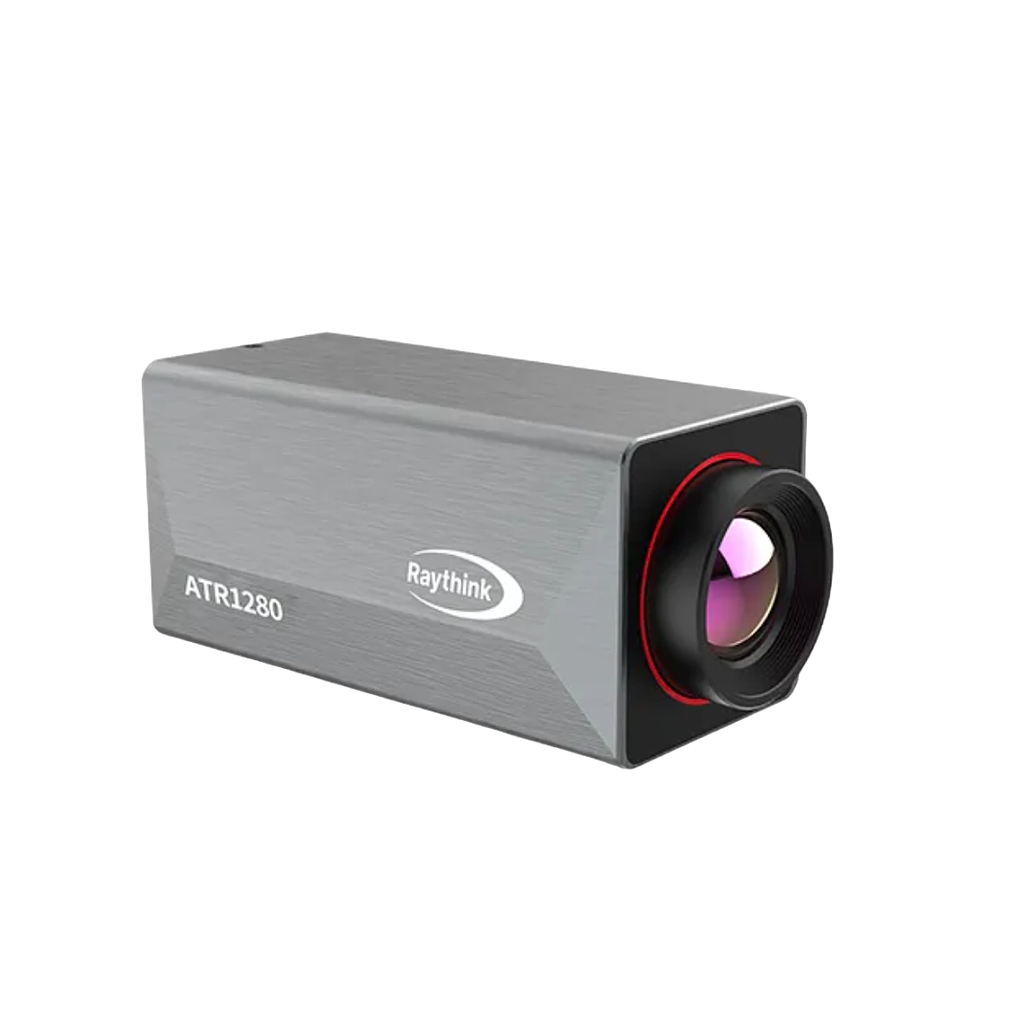

Raythink ATR1280 HD Online Thermal Camera (8μm~14μm; -20℃ ~ 550℃)

Thermal Imaging Parameters

Detector: Uncooled VOx detector

Infrared Resolution: 1280×1024

Pixel pitch: 12μm

Spectral Band: 8μm~14μm

Thermal Sensitivity (NETD): <50mK

Temperature Measurement Function

Measurement Range: -20℃~+150℃,0℃~550℃

Measurement Accuracy: ±2°C or ±2% of readings, whichever is greater.

Temperature Measurement Correction: Reflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distance

Measurement Tool: Settings of measurement rules for a total of 12 points, lines, and areas Supports isotherm setting

Temperature Width Stretch: Support temperature width stretch

Image and Video

Frame Rate: 15Hz

Palettes: 18 color palettes including black-hot, white-hot, iron red, rainbow, etc.

Thermal Image Capture: Support thermal image capture and secondary analysis

Mirror Image: Horizontal/Vertical/Diagonal

Digital Zoom: 1.0~8.0 continuous zoom (step size: 0.1)

System Interface

Communication interface: RJ45, supporting Gigabit network.

Network Protocol: TCP, UDP, ICMP, DHCP

Interface Protocol: GigE Vision

Device Specifications

Operating Temperature: -20℃~+60℃

Power supply mode: 6~16V DC

Typical Power Consumption: 4.5W

Dimensions: 70mm×63mm×143mm (19mm lens)

Weight: Approx. 725g (19mm lens)
