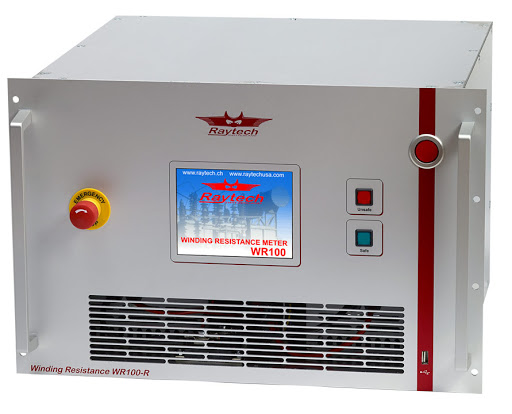

Raytech WR100-13R Winding Resistance Meter (100Amps, 3 Channels)

Specifications
- Size L: 490 mm (19.3”) W: 436 mm (17.2”) H: 310 mm (12.2”), Rack Unit: 7U
- Weight: 21.9 kg (48.3 lbs.)
- Input Power: 90 to 264 VAC (1.5 kW max.), 47...63 Hz, automatic ranging
- Output Voltage: 0 to 50 V DC
- Test Current user selectable: 25 mA ... 100 A
- Color LCD with back lighting and touch screen
- Front Panel Sealed, Anodized
- Interfaces: 4 USB 2.0 full speed (3 host, 1 device) and 9 Pin RS232 serial
- Memory Storage: Internally stores more than 10 000 test results
- Temperature: Operating –10°C to 60°C, Storage –20°C to 70°C

Measurement Parameters
- Current Range/ Measuring Range/ Accuracy/ Resolution
30-50A/ 0.00 µΩ...1.3 Ω/ ±0.1% Rdg/ ±0.05 µΩ/ 5 Digits or 0.05 µΩ
15-30A/ 0.0 µΩ...3.3 Ω/ ±0.1% Rdg/ ±0.1 µΩ/ 5 Digits or 0.1 µΩ
8-15A/ 0.0000 mΩ...6.3 Ω/ ±0.1% Rdg/ ±0.2 µΩ/ 5 Digits or 0.2 µΩ
3-8A/ 0.0000 mΩ...16.7 Ω/ ±0.1% Rdg/ ±0.5 µΩ/ 5 Digits or 0.5 µΩ
1-3A/ 0.000 mΩ...47.2 Ω/ ±0.1% Rdg/ ±1 µΩ/ 5 Digits or 1 µΩ
0.7-1A/ 0.000 mΩ...71.4 Ω/ ±0.1% Rdg/ ±2 µΩ/ 5 Digits or 2 µΩ
0.3-0.7A/ 0.000 mΩ...167 Ω/ ±0.1% Rdg/ ±5 µΩ/ 5 Digits or 5 µΩ
0.1-0.3A/ 0.00 mΩ...500 Ω/ ±0.1% Rdg/ ± 10 µΩ/ 5 Digits or 10 µΩ
25-100mA/ 0.00 mΩ...2 kΩ/ ±0.1% Rdg/ ±20 µΩ/ 5 Digits or 20 µΩ
<25mA/2 kΩ...10 kΩ/ ±0.2% Rdg/ ±200 mΩ/ 5 Digits or 200 mΩ
<25mA/ 10 kΩ...100 kΩ/ ±0.8% Rdg/ ±20 Ω/ 4 Digits or 20 Ω
- Resistance Range: 0.00 µΩ to 100 kΩ
- Inductance Range: 0 Henry to 1500 Henry

Accessories:
- Cable Bag
- Current Cables 2 x 10m
- Potential Cables CH 1 2 x 10m
- Potential Cables CH 2 2 x 10m
- Potential Cables CH 3 2 x 10m
- 2 Jumper Cable 2 x 10m
- Hardwired Power Cable
- Set of Accessories (rack handles, fuses)
- USB Memory Stick
- Instruction Manual
- T-Base Pro Software for Data Exchange and Analysis.
