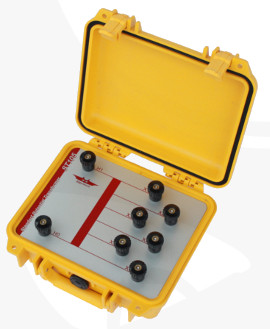

Raytech ST105 Standard Ratio Box for Calibration

Specifications
- Size L: 270 mm (10.6”) W: 245 mm (9.7”) H: 125 mm (4.9”)
- Weight 3.8 kg (8.3 lbs.)
- Input Power none
- Test Voltage max 100 VAC 49 - 61 Hz
- Front Panel Sealed anodized
- Ratio Ranges 1:1 / 1:10 / 1:100 / 1:1'000 / 1:10'000

Measurement Parameters
- Nominal Ratios/ Initial Accuracy (at 100kΩ Load)
1:1/ ± 0.001%
1:10/ ± 0.005%
1:100/ ± 0.03%
1:1'000/ ± 0.05%
1:10'000/ ± 0.2%

Accessories:
- Test Certificate

Datasheet
