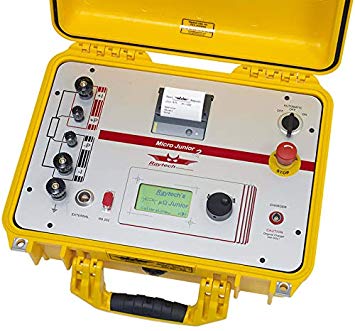

Raytech Micro Junior 2 Micro Ohm Meter (10A)

Specifications
- Size L: 410 mm (16.1”) W: 337 mm (13.3”) H: 178 mm (7”)
- Weight 5.9 kg (13 lbs.)
- Power: Lithium-Ion battery, 16.4V / 6Ah
- Test Current user selectable: 10, 1, 0.1, 0.01, 0.001 A DC
- Panel Display: LCD graphic with back light
- Front Panel Sealed, Anodized with a multi-actuation rotary knob
- Interface: 9 Pin RS232 serial
- Internal panel mount printer
- Memory Storage: Internally stores up to 2 000 test results
- Temperature Operating –10°C to +60°C, Storage –20°C to +70°C

Measurement Parameters
- Current Range/ Measuring Range/ Accuracy/ Resolution
10 A F/R* / 0.00 µΩ...40 mΩ/ ± 0.1% Rdg/ ±0.1 µΩ/ 5 Digits or 0.01 µΩ
10 A/ 0.0 µΩ...40 mΩ/ ±0.1% Rdg/ ±1 µΩ / 5 Digits or 0.1 µΩ
1 A F/R*/ 0.0 µΩ...1 Ω/ ±0.1% Rdg/ ±1 µΩ/ 5 Digits or 0.1 µΩ
1 A/ 0.000 mΩ...1 Ω/ ±0.1% Rdg/ ±10 µΩ/ 5 Digits or 0.001 mΩ
0.1 A/ 0.00 mΩ...10 Ω/ ±0.1% Rdg/ ±0.1 mΩ/ 5 Digits or 0.01 mΩ
10 mA/ 0.0 mΩ...400 Ω/ ±0.1% Rdg/ ±1 mΩ/ 5 Digits or 0.1 mΩ
1 mA/ 0.0 Ω...40 kΩ/ ±0.1% Rdg/ ±0.1 Ω/ 5 Digits or 0.1 Ω
1 mA/ 40 kΩ...400 kΩ/ ±0.1% Rdg/ 5 Digits
* F/R = automatic Forward / Reverse current measurements
- Resistance Range: 0.00µΩ to 400kΩ
- Measuring duty cycle: 200A 10min. on, 2min. off; 100A and below continuous

Accessories:
- Cable Bag
- Current Cables 2 x 3m
- Potential Cables 2 x 3m
- Power Cord Charger 100 to 265 VAC
- Instruction Manual
- 2 Paper Rolls
- Toolbox Software for Data Exchange
