Electrical Schematic Diagram:
Product brief (WD019-Z1/ WD019-Z2:

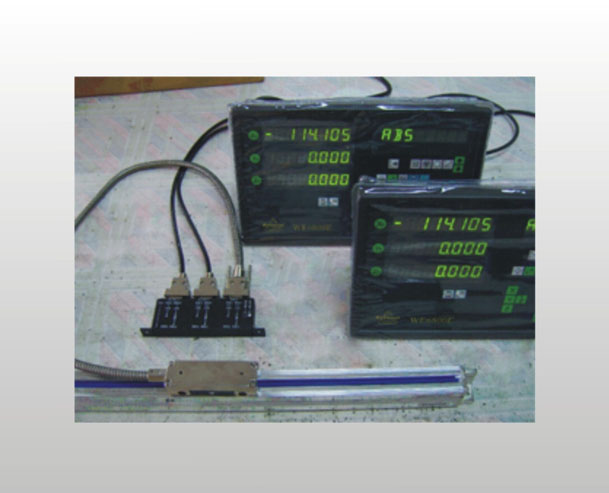

WD019-Z1 and WD019-Z2 is 1to2 pinboard of output signal of linear scale. The exchanger’s main function is to transform the signal output from linear scale into two sets of mutual non-interference signals, which are available in single-terminal signal or differential signal used by two sets of digital readouts to compare and analyze those data. WD019-Z1 is differential input and WD019-Z2 is single-terminal input.
