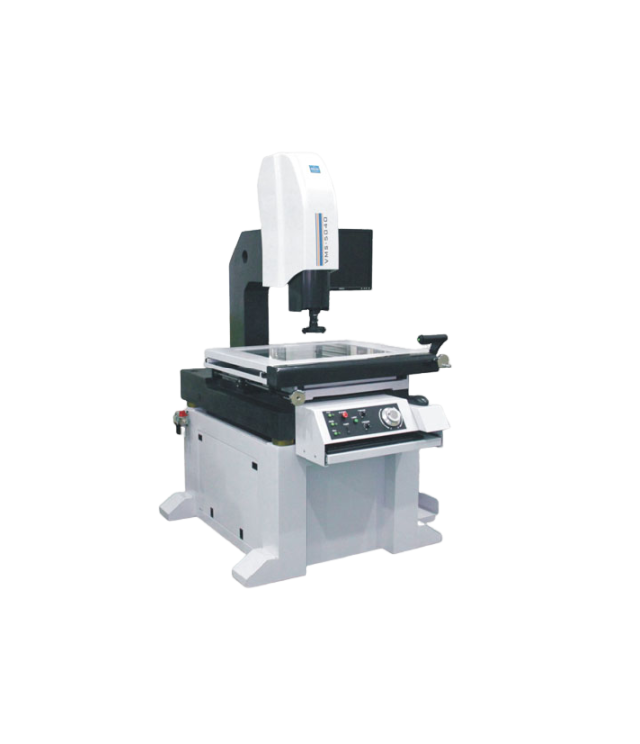

Rational VMS-5040M Floor Type CNC Video Measuring System (X,Y: 470×370)

Working table:

Metal table size (mm): 786×636

Glass table size (mm): 570×470

Travel (mm): 470×370

Linear scale resolution: 0.5μm

Indication error: E1XY=(2.5＋L/75)μm

Video system

1/2” color CCD camera

0.7~4.5× zoom lens. Total magnification: 20～128×（19.5 inches display. Resolution: 1440*900）

Field of view: 11.1mm～1.7mm

Power supply: AC 100-240V 50/60Hz. Power: 1800W (excluding PC)

Dimension (L×W×H): 1200×1270×1870

Z-axis travel（mm): 200 (Can be customized to 400mm)

Weight (kg): 850

Features：

1. Ergonomic design makes it convenient to operate.

2. One-button working table - Easy to operate.

3. Z-axis is available in 3 focusing modes.

4. Auto zoom feature (optional configuration), which is able to effectively measure the object with multi-magnification while doesn’t need to calibrate pixels.

5. Adopts passive vibration isolation apparatus, which improves an instrument’s stability in the aspect of precision

6. elf-developed measuring software QMS3D-M and imported HD 1/2” color camera.

7. Detects the measured workpiece’s specific location by laser indicator, which is suitable for complicated workpiece.

8. Height aided measurement available.

9. Linear scale resolution: 0.5um

10. Foot-switch matched with measuring software, which makes operation easier.
