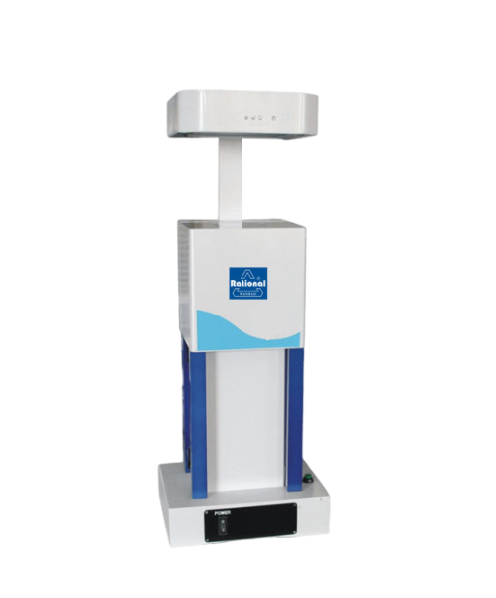

Rational VMS-0705S Quick Type Video Measuring System (D 80mm)

Working table:

Measuring range: Diameter: 80mm

Max. height: 20mm

Max. measuring error: 5 - 8μm

Digital measuring system: Processed by measuring software QV200; 0.12X fixed lens (total magnification is 7.2X)

Dimension (L×W×H): 230×260×540mm

Weight (kg): 12

Features：

1. Small in size and light in weight.

2. HD digital video system.

3. High efficiency, which is suitable for large quantities of inspection.

4. Auto drawing matching feature, which simplifies operation while doesn’t need positioning tool or fixture.

5. Identifies multiple workpieces while carrying out measurement.

6. One-button intelligent measuring system.
