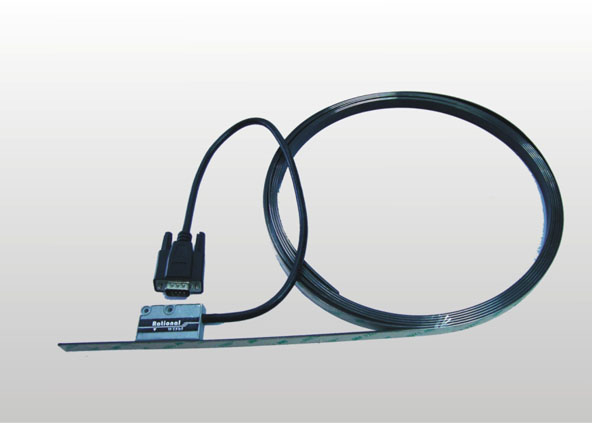

Rational Magnetic Linear Scale Magnetic Linear Scale
ManufacturerRational(View more products from this manufacturer)
ModelMagnetic Linear Scale
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Resolution: 5μm
Accuracy: ±（0.015+0.035*L）mm L is length of magnetic linear scale (unit: m).
Installation distance between magnetic head and magnetic stripe: 0.1－2mm
RI: 5mm every one RI
Output signal: Differential signal A+, A-, B+, B-, RI+, RI-
Voltage: 5V
Max. speed: 16m/s
Dust prevention level: IP67
Operating temperature: -10℃～70℃
Storage temperature: -20℃～80℃
Length of signal cable: 350m (Standard configuration)
Admissible value of installation angle error: 3℃
Pulse interval: 1us
