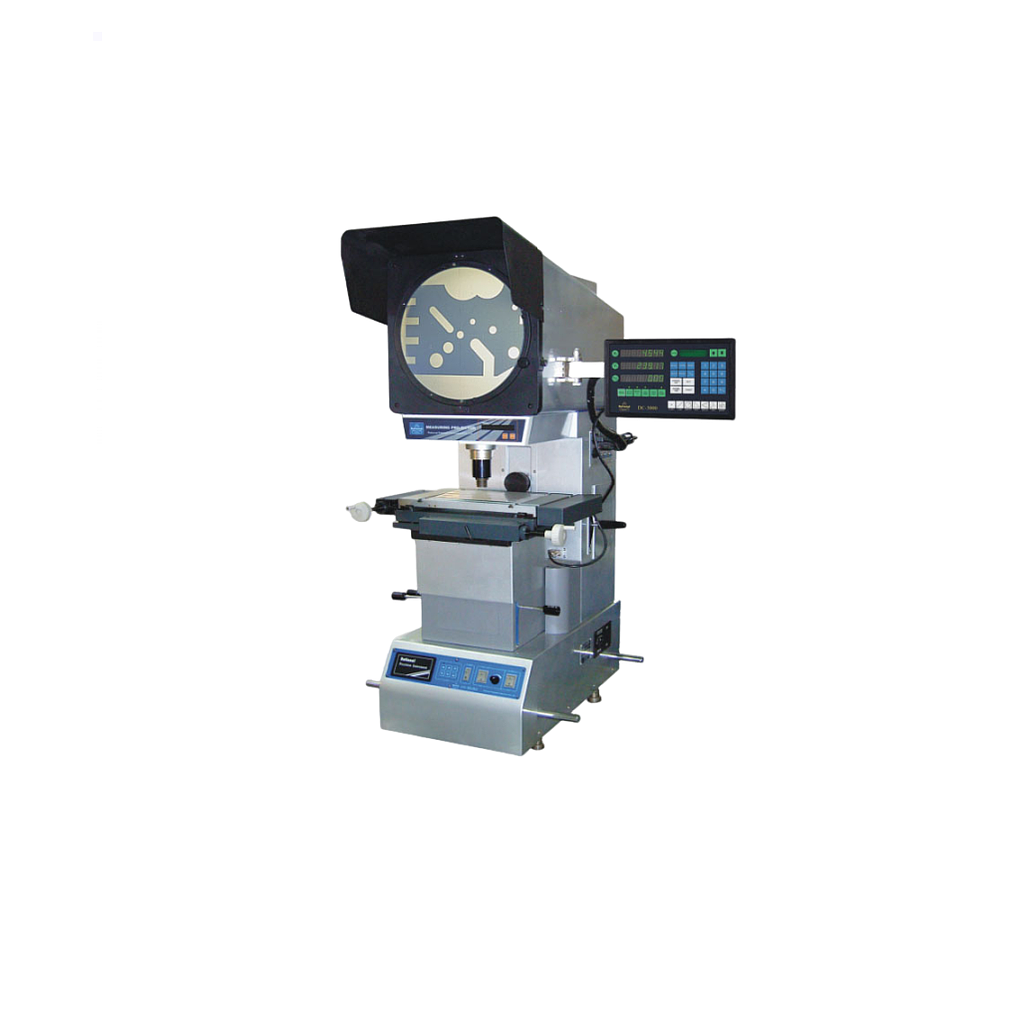

Rational CPJ-3020DZ Automatic Profile Projector (X: 200mm; Y:100mm; Z: 100mm)

X-axis Travel (mm): 200

Y-axis Travel (mm): 100

Metal table size (mm): 404×228

Glass table size (mm): 260×160

Resolution (μm): 0.5

Indication error (mm): X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/25 (L is the length of the measured object. Unit: mm)

Z-axis motion speed (mm/s): 5, 1, 0.01 (3 modes available)

Z-axis Travel (mm): 100

Weight (kg): 150

Dimension (mm): 670×570×1250

Projection screen:

Size (mm): Ф 312

Rotary range: 0~360°

Resolution: 1' or 0.01°

Lens:

- Magnification: 10× (Optional)

Field of view (mm): Ф30

Working distance (mm): 77.7

Max. measuring Height (mm): 90

- Magnification: 20× (Optional)

Field of view (mm): Ф15

Working distance (mm): 44.3

Max. measuring Height (mm): 90

- Magnification: 50× (Optional)

Field of view (mm): Ф6

Working distance (mm): 38.4

Max. measuring Height (mm): 90

- Magnification: 100× (Optional)

Field of view (mm): Ф3

Working distance (mm): 25.3

Max. measuring Height (mm): 90

Power supply: AC 100-240V 50/60Hz. Total power: 450W

Product brief ：

CPJ-3000DZ series digital profile projector, whose Z-axis adopts step motor drive to adjust the focus, and installs a grating counter card, is a measuring instrument that can be measured ladder-shaped parts, greatly improving the work efficiency. The lens is available in 5X, 10X, 20X, 50X, or 50X, in accordance with the actual measured objects.

This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
