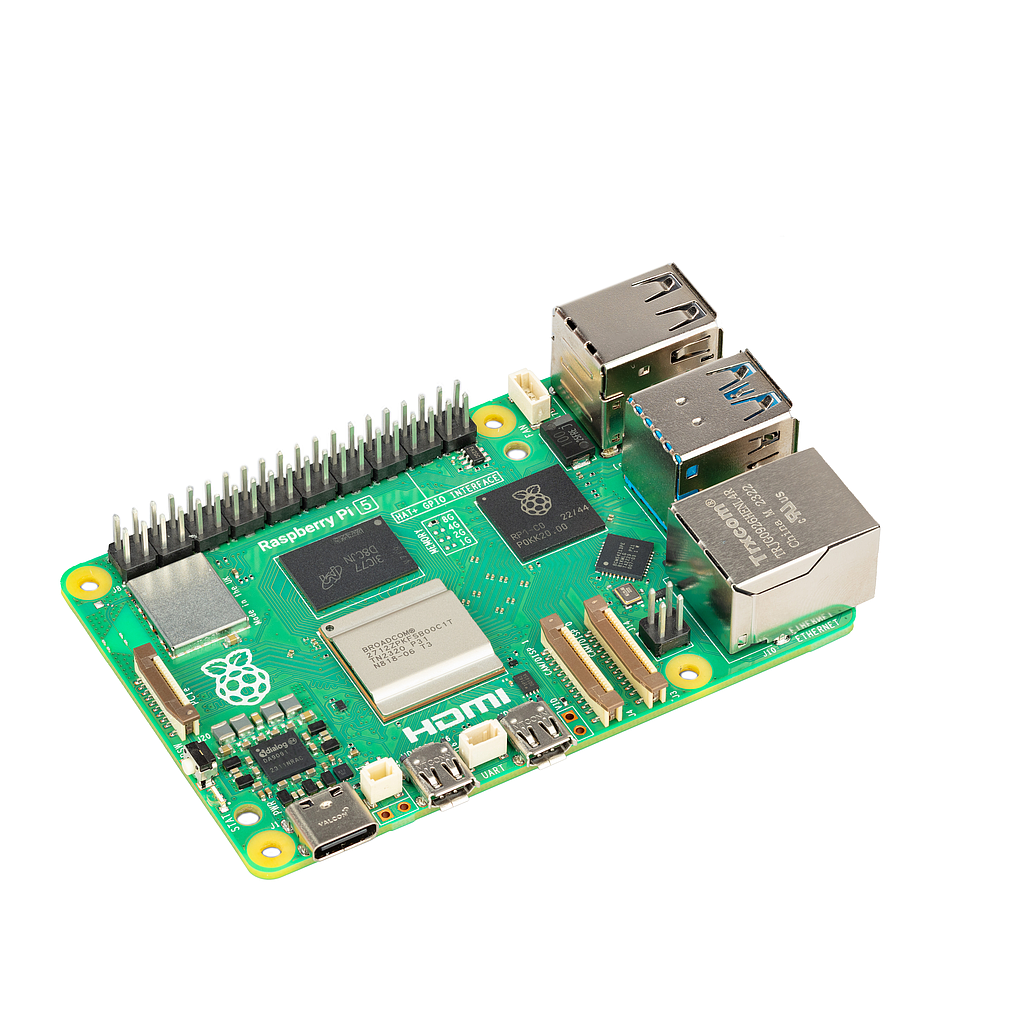

Raspberry Pi SC1432 Single Board Computer (SBC 2.4GHZ 4 CORE 8GB PI 5)

Processor Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,

with cryptography extensions, 512KB per-core L2 caches, and a

2MB shared L3 cache

Features:

• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2

• Dual 4Kp60 HDMI® display output with HDR support

• 4Kp60 HEVC decoder

• LPDDR4X-4267 SDRAM (4GB and 8GB SKUs available at launch)

• Dual-band 802.11ac Wi-Fi®

• Bluetooth 5.0 / Bluetooth Low Energy (BLE)

• microSD card slot, with support for high-speed SDR104 mode

• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

• 2 × USB 2.0 ports

• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

• 2 × 4-lane MIPI camera/display transceivers

• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)

• 5V/5A DC power via USB-C, with Power Delivery support

• Raspberry Pi standard 40-pin header

• Real-time clock (RTC), powered from external battery

• Power button
