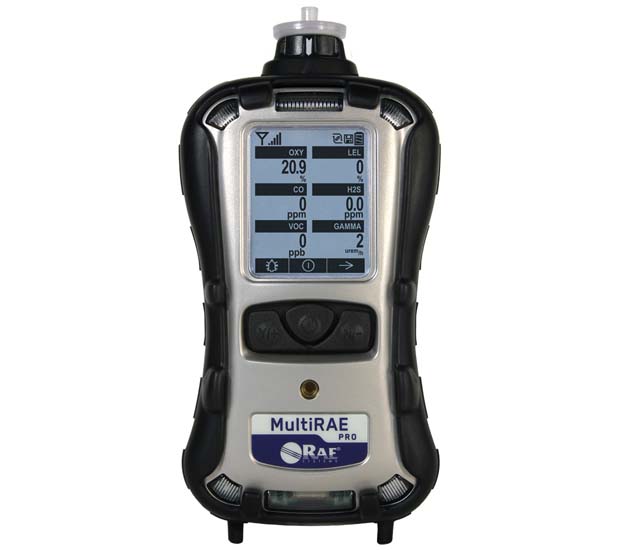

RAE MultiRAE Pro PGM-6248 Wireless Portable Multi-Gas Monitor

SENSOR SPECIFICATIONS:
RADIATION SENSORS: RANGE/ SENSOR TYPE
GAMMA: 0 to 20,000 μRem/h (dose rate); 1cc CsI (Tl) scintillator with photodiode (Optional)
PID SENSORS RANGE RESOLUTION
VOC 10.6 EV (EXT. RANGE): 0 to 5,000 ppm; 0.1 ppm (Optional)
VOC 10.6 EV (PPB): 0 to 2,000 ppm; 10 ppb (Optional)
COMBUSTIBLE SENSORS : RANGE/ RESOLUTION
CATALYTIC LEL: 0 to 100% LEL; 1% LEL (Optional)
NDIR (0-100% LEL METHANE): 0 to 100% LEL; 1% LEL (Optional)
NDIR (0-100% VOL. METHANE) 0 to 100% Vol; 0.1% Vol (Optional)
CARBON DIOXIDE SENSOR
CARBON DIOXIDE (CO2): NDIR 0 to 50,000 ppm; 100 ppm (Optional)
ELECTROCHEMICAL SENSORS
AMMONIA (NH3): 0 to 100 ppm; 1 ppm (Optional)
CARBON MONOXIDE (CO): 0 to 500 ppm; 1 ppm (Optional)
CARBON MONOXIDE (CO), EXT. RANGE:0 to 2,000 ppm; 10 ppm (Optional)
CARBON MONOXIDE (CO), H2-COMP.: 0 to 2,000 ppm; 10 ppm (Optional)
CARBON MONOXIDE (CO) +: 0 to 500 ppm; 1 ppm (Optional)
HYDROGEN SULFIDE (H2S) COMBO: 0 to 200 ppm; 0.1 ppm (Optional)
CHLORINE (CL2): 0 to 50 ppm ; 0.1 ppm (Optional)
CHLORINE DIOXIDE (CLO2): 0 to 1 ppm; 0.03 ppm (Optional)
ETHYLENE OXIDE (ETO-A): 0 to 100 ppm; 0.5 ppm (Optional)
ETHYLENE OXIDE (ETO-B): 0 to 10 ppm; 0.1 ppm (Optional)
ETHYLENE OXIDE (ETO-C), EXT. RANGE9:0 to 500 ppm; 10ppm (Optional)
FORMALDEHYDE (HCHO): 0 to 10 ppm; 0.05 ppm (Optional)
HYDROGEN (H2)9: 0 to 1,000 ppm; 10ppm(Optional)
HYDROGEN CYANIDE (HCN): 0 to 50 ppm; 0.5 ppm(Optional)
HYDROGEN SULFIDE (H2S): 0 to 100 ppm; 0.1 ppm(Optional)
HYDROGEN SULFIDE (H2S), EXT. RANGE9: 0 to 1,000 ppm; 1 ppm(Optional)
METHYL MERCAPTAN (CH3-SH): 0 to 10 ppm; 0.1 ppm (Optional)
NITRIC OXIDE (NO): 0 to 250 ppm ;0.5 ppm (Optional)
NITROGEN DIOXIDE (NO2): 0 to 20 ppm; 0.1 ppm (Optional)
OXYGEN (O2): 0 to 30% Vol.; 0.1% Vol. (Optional)
OXYGEN (LIQ O2) :0 to 30% Vol.; 0.1% Vol. (Optional)
PHOSPHINE (PH3): 0 to 20 ppm; 0.1 ppm (Optional)
PHOSPHINE (PH3 H): 0 to 20 ppm ;0.1 ppm (Optional)
SULFUR DIOXIDE (SO2): 0 to 20 ppm; 0.1 ppm (Optional)

Datasheet

Code order MultiRAE Pro PGM-6248
