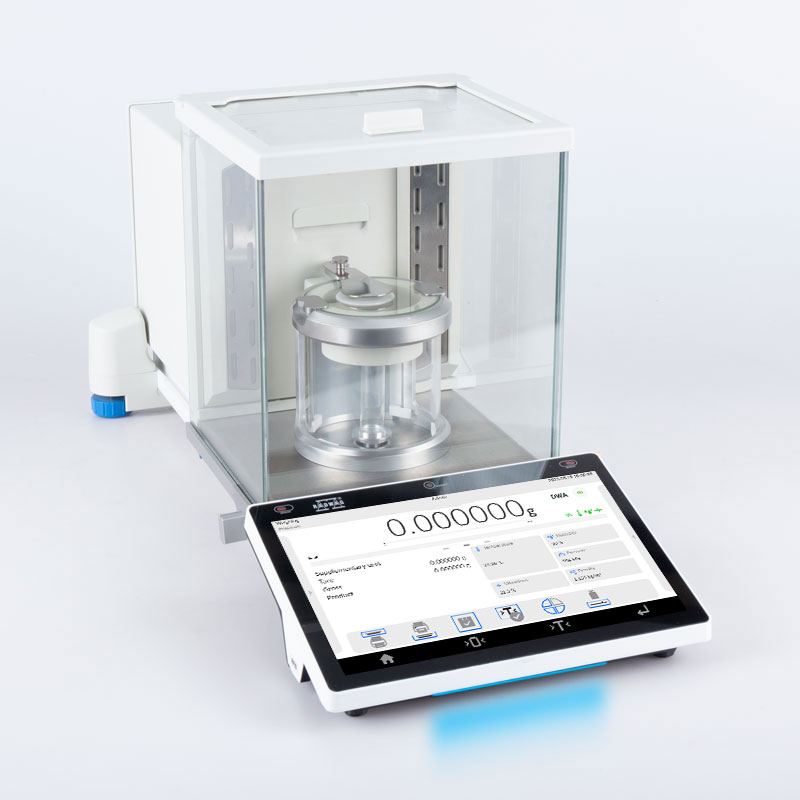

RADWAG XA 22.5Y.M.A.P.Q Microbalance (22g, 0,1mg)

Metrological parameters

-Maximum capacity [Max]: 22 g

-Minimum load: 0.1 mg

-Readability [d]: 1 µg

-Verification unit [e]: 1 mg

-Tare range: -21 g

- Repeatability : 0.0007 mg (at 1 g)

-Standard minimum weight (USP): 2,6 mg

-Standard minimum weight (U=1%, k=2): 0,26 mg

-Linearity: 0.0007 mg

-Eccentric load deviation: 15 µg

-Sensitivity time drift: 1×10⁻⁶/Year×Rt

-Stabilization time: 3.5s

-Adjustment: internal (automatic)

-OIML Class: I

Physical parameters

-Leveling system: automatic - Reflex Level System

-Display: 10″ graphic colour touchscreen

-Delivery components: Microbalance, weighing pan, weighing pan shield, power supply, automatic pipette calibration adapter: (base, bottom ring, glass vessel, pipette calibration adapter, evaporation ring, weighing pan, glass lid, mechanical closing cover, protecting screw), brush, fabric dust cover.

- Capacity: 11 ml

-Weighing pan dimensions: ø26 mm

- Net weight: 14.5 kg

- Gross weight: 18,9 kg

- Protection class: IP 43

Communication interface

-Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot

-Electrical parameters: Power supply

- Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A

- Balance: 12 – 15V DC 1.4A max*

Environmental conditions

-Operating temperature: +10 — +40 °C

-Operating temperature change rate: ±0.3°C/1h (±1°C/8h)

- Relative humidity: 40% — 80%

- Relative humidity change rate: ±1%/h (±4%/8h)
