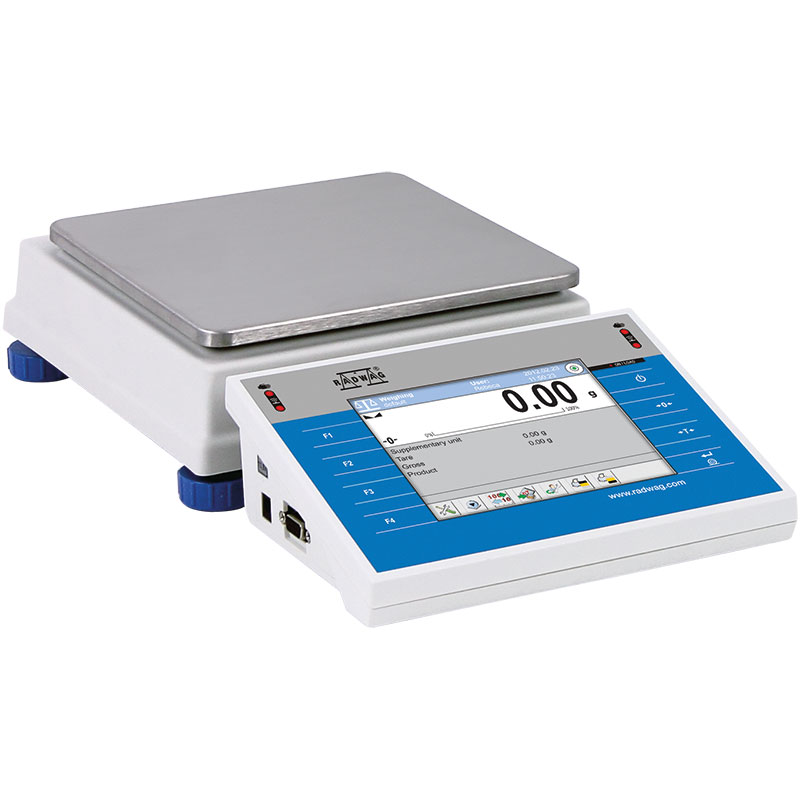

RADWAG WLY 2/D2 Precision Balance (2 kg, 0.01g)

Metrological parameters

Maximum capacity [Max]: 2 kg

Readability [d]: 0.01 g

Verification unit [e]:

Tare range: - 2 kg

Repeatability: 0.03 g

Linearity: ±0.03 g

Stabilization time:3 s

Adjustment: external

Physical parameters

Leveling system: manual

Display: 5.7” Resistive Touchscreen

Weighing pan dimensions: 195×195 mm

Net weight: 2.7 kg

Gross weight: 4.22 kg

Protection class: IP 43

Communication interface

Communication interface:2×RS232, 2×USBA, Ethernet, 4 IN / 4 OUT (digital), WiFi®

Electrical parameters: Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 1A; 15V DC 2.4A

Balance: 10 – 28V DC 1A max

Environmental conditions

Operating temperature: +15 — +30 °C

Storage temperature: 25 +70 °C

Relative humidity: 10% — 85% RH no condensation
