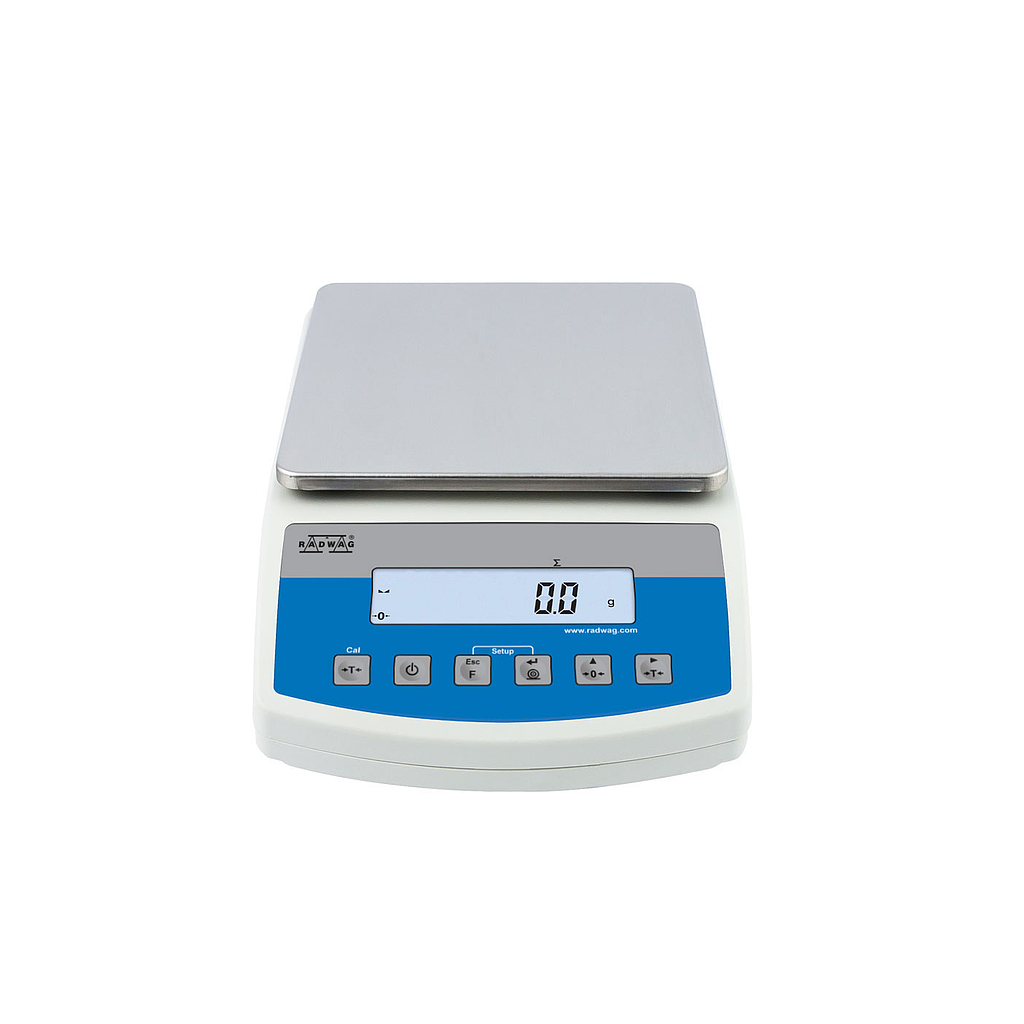

RADWAG WLC 6/A2 Precision Balance (6 kg, d=0.1g)

Maximum capacity [Max]: 6 kg

Minimum load: 5 g

Readability [d]: 0.1 g

Verification unit [e]: 1 g

Tare range: -6 kg

Repeatability: 0.1 g

Linearity: ±0.2 g

Stabilization time: 3 s

Adjustment: -

OIML Class: II

Physical parameters

Leveling system: manual

Display: LCD (backlit)

Weighing pan dimensions: 195×195 mm

Net weight: 2.64 kg

Construction

Protection class: IP 43

Communication interface

Communication interface: 2×RS232, USB-A, USB-B

Electrical parameters

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 10 – 15VDC 0.6A max

Operation time on batteries: 15 h (average time)

Environmental conditions

Operating temperature: +15 – +30 °C

Relative humidity: 10% – 85% RH no condensation
