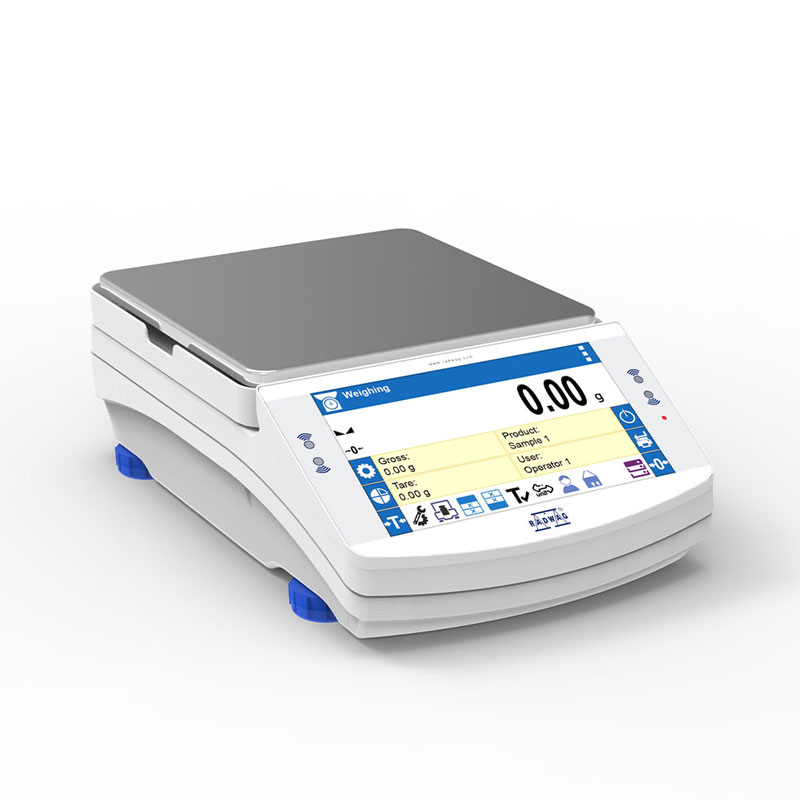

RADWAG WLC 2.X7 Precision Balance (2 kg, 0.01 mg)

Metrological parameters

Maximum capacity [Max]: 2 kg

Readability [d]: 0.01 g

Verification unit [e]:

Tare range: 2 kg

Repeatability: 0.015 g

Linearity: ±0.03 g

Stabilization time:2 s

Adjustment: internal (automatic)

Physical parameters

Leveling system: manual

Display: 7″ graphic colour touchscreen

Weighing pan dimensions: 195×195 mm

Net weight: 2.2 kg

Gross weight: 3.5 kg

Protection class: IP 43

Database capacity: 7

Communication interface

Communication interface: 2×RS232¹, USBA, USBB, Ethernet, WiFi®

Electrical parameters: Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 10 – 15V DC 0.6A max

Power consumption: 4 W

Environmental conditions

Operating temperature: +10 — +40 °C
