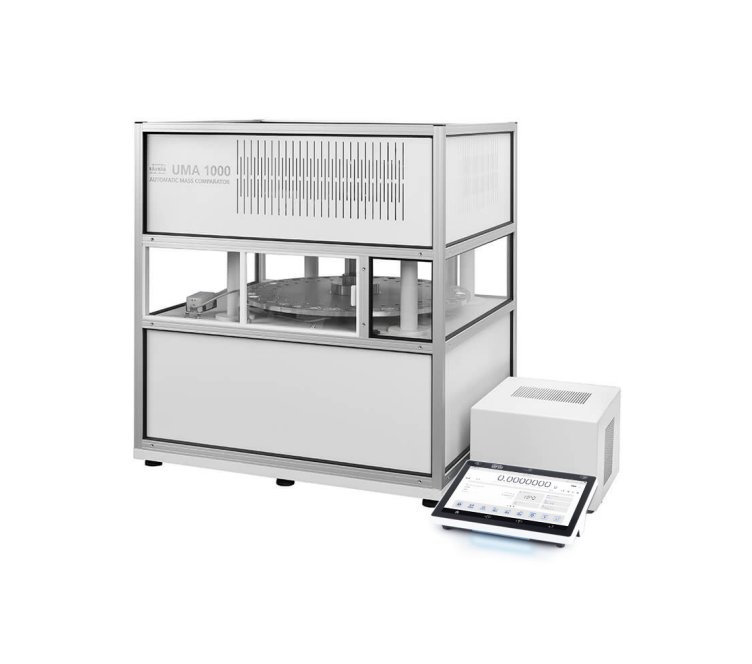

RADWAG UMA 1000.5Y Automatic Mass Comparator (1060 g; 0.005 mg)

Metrological parameters:

E1 Calibration Range : 100 – 1000 g

E2 Calibration Range : 10 – 1000 g

F1 Calibration Range : 10 – 1000 g

F2 Calibration Range: 10 – 1000 g

M1 Calibration Range: —

M2 Calibration Range: —

Maximum capacity [Max] : 1060 g

Readability [d] : 0.005 mg

Standard repeatability [5% Max]: 8 µg

Standard repeatability [Max] : 12 µg

Permissible repeatability: 20 µg

Eccentricity (tested load) : 0 mg

Electric compensation range : -10 g – +60 g

Stabilization time : 30 s

Adjustment: external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : ø48 mm

Weighing device dimensions : 700×585×720 mm

Controling device dimensions : 460×250×195 mm

Packaging dimensions : 1200×1000×1200 mm

Net weight : 116 kg

Gross weight : 206 kg

Communication interface:

Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Electrical parameters:

Power supply : 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (3% / 4 h)
