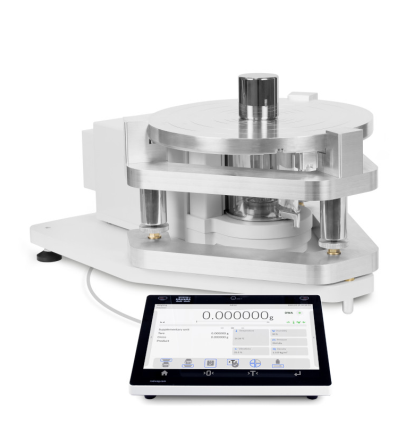

RADWAG SM-MYA 5.1.5Y Susceptomete

E1 Calibration Range: 2 g – 50 kg

E2 Calibration Range: 2 g – 50 kg

F1 Calibration Range: 2 g – 50 kg

F2 Calibration Range: 2 g – 50 kg

Maximum capacity [Max]: 50 kg

Readability [d]: 10 µg

Standard repeatability [Max]: 1.6 µg

Standard repeatability [5% Max]: 0.6 µg

Stabilization time: 10 s

Adjustment: internal (automatic)

Calibration Range: 2 g – 50 kg

Distance platform Z0: 18; 20; 27; 35; 43 mm

Magnetizing field strenght: 2700, 2000, 800, 380, 200 A/m

Physical parameters

Display: 10″ graphic colour touchscreen

Physical parameters

Weighing chamber doors: automatic

Weighing pan dimensions: ø300 mm

Device dimensions W x D x H: 525×350×250 mm

Packaging dimensions W x D x H: 950×750×750 mm

Net weight: 26 kg

Dipole moment of magnets: ≤ 0.1 Am2

Communication interface: 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi, Hotspot

Operating temperature: +15 – +30 °C

Operating temperature change rate: ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity: 40% – 60%

Relative humidity change rate: ±2% / 4 h

Construction

Housing: ABS plastic

Processor: 2×1 GHz

Memory: RAM 256 MB DDR2, 16GB – microSD
