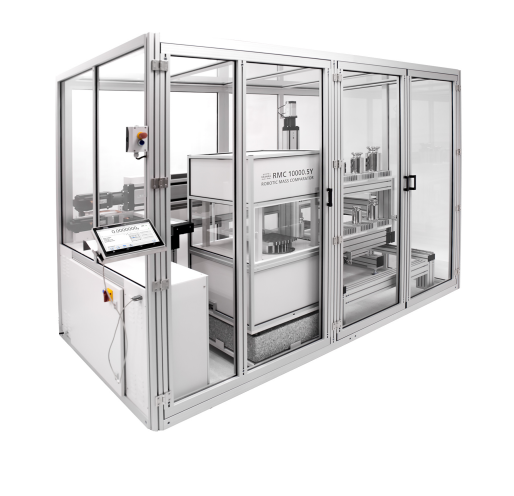

RADWAG RMC 20000.5Y Robotic Mass Comparator (20.2 kg; 0.1 mg)

Metrological parameters:

E0 Calibration Range : 1 kg – 20 kg

E1 Calibration Range : 1 – 20 kg

E2 Calibration Range : 1 – 20 kg

F1 Calibration Range : 1 – 20 kg

F2 Calibration Range : 1 – 20 kg

Maximum capacity [Max] : 20.2 kg

Readability [d] : 0.1 mg

Standard repeatability [5% Max] : 0.15 mg

Standard repeatability [Max] : 0.2 mg

Permissible repeatability : 0.3 mg

Electric compensation range : -50 g – +200 g

Stabilization time : 30 s

Adjustment : internal (automatic)

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : ø190 mm - self centering

Device dimensions : 2700×1400×2000 mm

Controling device dimensions : 249×170×72 mm

Construction:

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi. Hotspot

Electrical parameters:

Power supply : 110 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (2% / 4 h)
