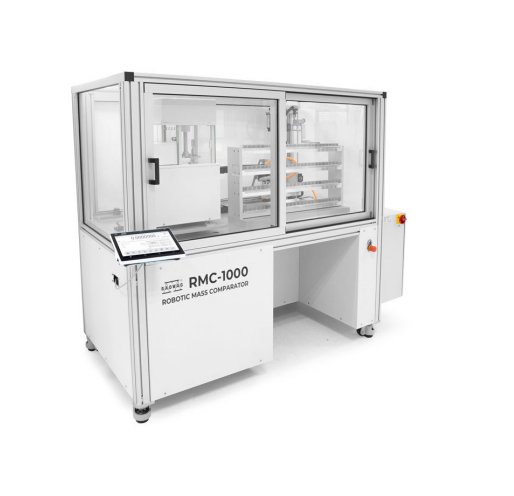

RADWAG RMC 1000.5Y Robotic Mass Comparator (1020 g; 1 µg)

Metrological parameters:

E0 Calibration Range : 10 g – 1 kg

E1 Calibration Range : 10 g – 1 kg

E2 Calibration Range : 10 g – 1 kg

F1 Calibration Range : 10 g – 1 kg

F2 Calibration Range : 10 g – 1 kg

Maximum capacity [Max] : 1020 g

Readability [d] : 1 µg

Standard repeatability [5% Max] : 3 µg

Standard repeatability [Max] : 4 µg

Permissible repeatability : 6 µg

Electric compensation range : -10 g – +20 g

Stabilization time : 30 s

Adjustment : external (automatic)

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : 100×45 mm

Device dimensions : 1571×1013×1615 mm

Controling device dimensions : 249×170×72 mm

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Electrical parameters:

Power supply : 110 – 240 V AC 50/60 Hz

Power consumption max.: 200 W

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (2% / 4 h)
