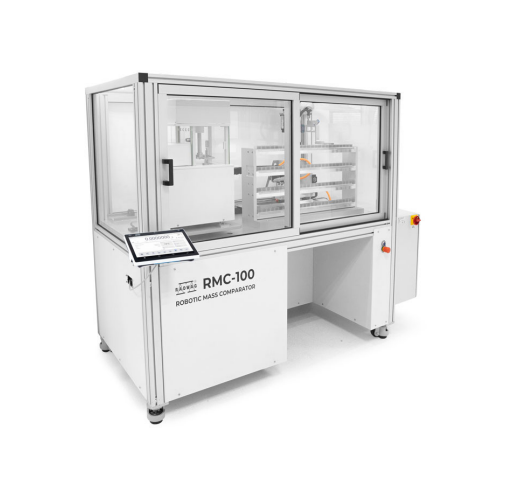

RADWAG RMC 100.5Y Robotic Mass Comparator (106 g ; 0.1 µg)

Metrological parameters:

E0 Calibration Range : 1 g – 100 g

E1 Calibration Range : 1 – 100 g

E2 Calibration Range : 1 – 100 g

F1 Calibration Range : 1 – 100 g

F2 Calibration Range : 1 – 100 g

Maximum capacity [Max] : 106 g

Readability [d] : 0.1 µg

Standard repeatability [5% Max] : 0.5 µg

Standard repeatability [Max] : 0.8 µg

Permissible repeatability : 1 µg

Electric compensation range : -1 g – +6 g

Stabilization time : 30 s

Adjustment : internal (automatic)

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : 24×63 mm

Device dimensions : 2050×1070×1600 mm

Controling device dimensions : 249×170×72 mm

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot

Electrical parameters:

Power supply : 110 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (2% / 4 h)

Datasheet
