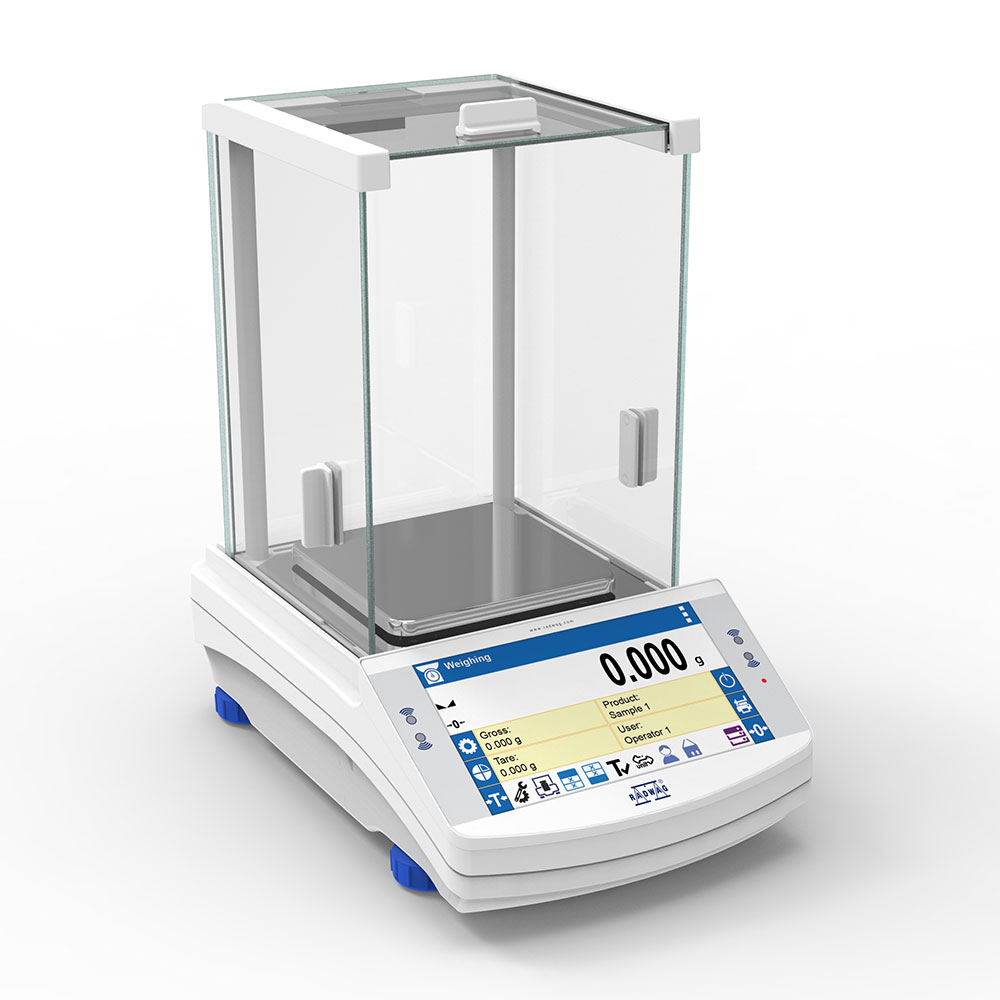

RADWAG PS 200/2000.X7 Precision Balance (200/2000 g, 1/10 mg)

Metrological parameters

-Maximum capacity [Max]: 200/2000 g

-Minimum load: -

-Readability [d]: 1/10 mg

-Verification unit [e]: -

-Tare range: -2000 g

-Standard repeatability [5% Max]: 0.5 / 5 mg

-Standard repeatability [Max]: 1 / 10 mg

-Standard minimum weight (USP): 1g

-Standard minimum weight (U=1%, k=2): 0.1 g

-Linearity: ±2 / 20 mg

-Stabilization time: 2 / 1.5 s

-Adjustment: internal (automatic)

-OIML Class: I

Physical parameters

-Leveling system: manual

-Display: 7″ graphic colour touchscreen

- Weighing chamber doors: manual

-Delivery components: Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

-Weighing pan dimensions: 128×128 mm

- Net weight: 3.9 kg

- Gross weight: 5.5 kg

- Protection class: IP 43

- Database capacity: 7

- Touch-free operation: 2 IR Sensors

Communication interface

-Communication interface: 2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® (option)

-Electrical parameters: Power supply

- Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

- Balance: 12 – 15V DC 0.8A max

- Power consumption: 4 W

Environmental conditions

-Operating temperature: +10 — +40 °C

- Ambient conditions monitoring (option):

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

- Relative humidity: 40% — 80%
