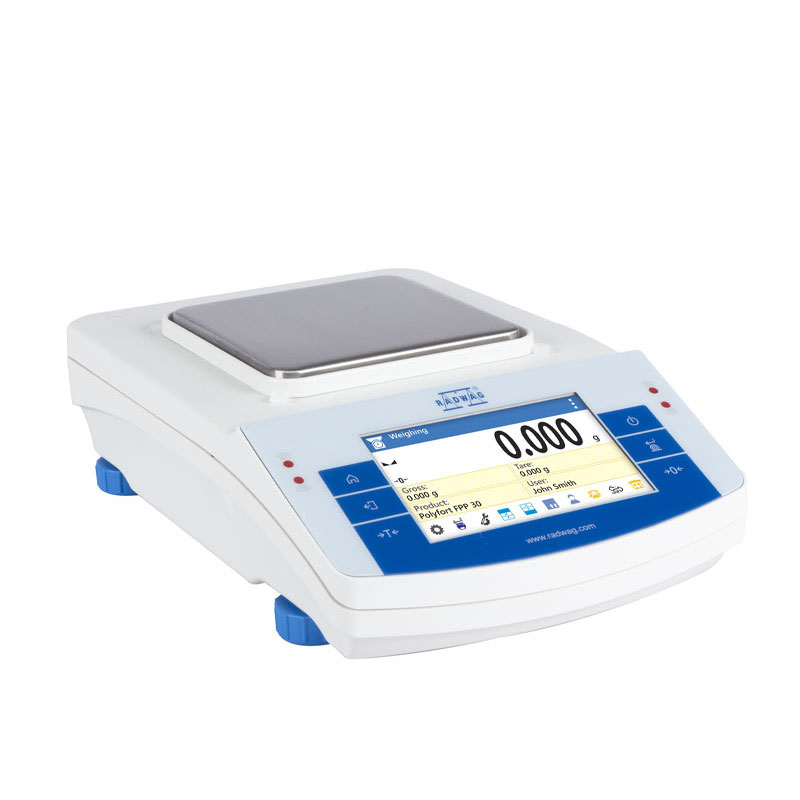

RADWAG PS 200/2000.X2 Precision Balance (200/2000 g, 1/10 mg)

Metrological parameters

Maximum capacity [Max]: 200/2000 g

Minimum load: 20mg

Readability [d]: 1/10 mg

Verification unit [e]: 10 / 100 mg

Tare range: - 2000 g

Standard repeatability [5% Max]: 0.5 / 5 mg

Standard repeatability [Max]: 1 / 10 mg

Standard minimum weight (USP): 1g

Standard minimum weight (U=1%, k=2): 0.1 g

Linearity: ±2 / 20 mg

Stabilization time: 2 / 1.5 s

Adjustment: internal (automatic)

OIML Class: II

Physical parameters

Leveling system: manual

Display: 5″ graphic colour touchscreen

Delivery components: Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

Weighing pan dimensions: 128×128 mm

Net weight: 4.33 kg

Gross weight: 5.5 kg

Protection class: IP 43

Touchfree operation: 2 IR Sensors

Communication interface

Communication interface: 2×RS232¹, USBA, USBB, Ethernet, WiFi®

Electrical parameters: Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A

Balance: 12 – 15V DC 0.8A max

Power consumption: 4 W

Environmental conditions

Operating temperature: +10 — +40 °C

Ambient conditions monitoring (option):

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Relative humidity: 40% — 80%
