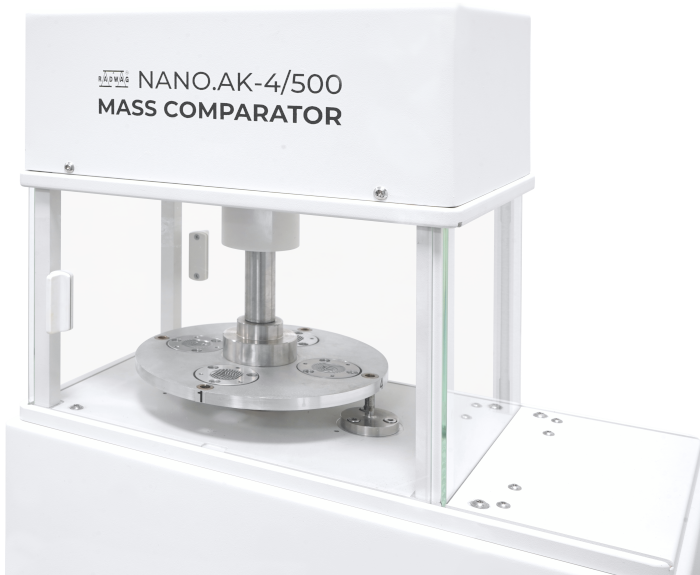

RADWAG NANO.AK-4.500.5Y Automatic Nano-Mass Comparator (510 mg; 10 ng)

Metrological parameters:

E1 Calibration Range: 0.05 – 500 mg

E2 Calibration Range: 0.05 – 500 mg

F1 Calibration Range: 0.05 – 500 mg

F2 Calibration Range: 0.05 – 500 mg

Maximum capacity [Max]: 510 mg

Readability [d]: 10 ng

Standard repeatability [5% Max]: 0.04 µg

Standard repeatability [Max]: 0.06 µg

Permissible repeatability: 0.1 µg

Eccentricity (tested load): 0 mg

Electric compensation range: 0 – 510 mg

Stabilization time: 30 s

Adjustment: external

Physical parameters:

Display: 10″ graphic colour touchscreen

Weighing pan dimensions: ø20 mm

Weighing device dimensions: 385×245×390 mm

Controling device dimensions: 460×250×195 mm

Packaging dimensions: 860×750×570 mm

Net weight: 21 kg

Gross weight: 31 kg

Supplementary weights internal: -

Supplementary weights external: -

Magazine positions: 4

Communication interface:

Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot

Electrical parameters:

Power supply: 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature: +15 – +30 °C

Operating temperature change rate: ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity: 40% – 60%

Relative humidity change rate: ±5% / 12 h (3% / 4 h)
