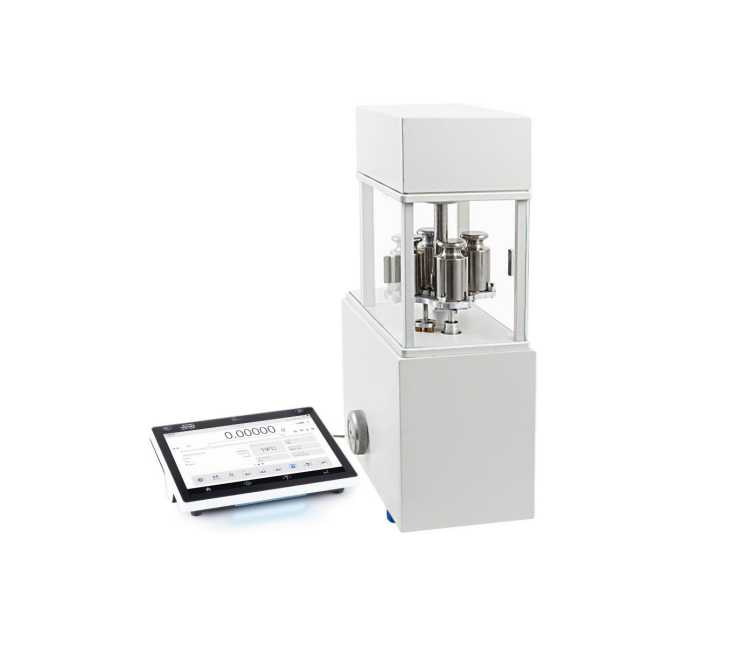

RADWAG AK-4.2000.5Y Automatic Mass Comparator (2.05 kg; 0.01 mg)

Metrological parameters:

E1 Calibration Range : 200 g – 2 kg

E2 Calibration Range : 200 g – 2 kg

F1 Calibration Range : 200 g – 2 kg

F2 Calibration Range : 200 g – 2 kg

Maximum capacity [Max] : 2.05 kg

Readability [d]: 0.01 mg

Standard repeatability [5% Max] : 12 µg

Standard repeatability [Max] : 15 µg

Permissible repeatability : 25 µg

Eccentricity (tested load) : 0 mg

Electric compensation range : -10 g – +20 g

Stabilization time : 30 s

Adjustment : external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions: ø75 mm

Weighing device dimensions : 385×215×600 mm

Controling device dimensions: 249×170×72 mm

Anti-draft chamber dimensions : 560×340×665 mm

Packaging dimensions : 860×800×560 mm

Net weight : 69 kg

Gross weight : 96 kg

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet,Wi-Fi, Hotspot

Electrical parameters:

Power supply : 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature: +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (3% / 4 h)
