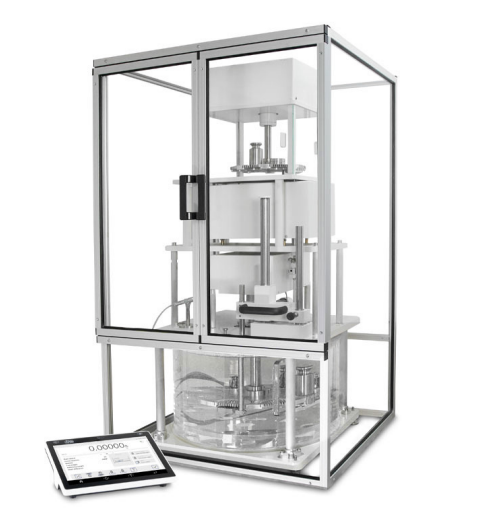

RADWAG AGV-8 1000.5Y Automatic Comparator (1110 g; 0.01 mg)

Metrological parameters:

E1 Calibration Range : 1 g – 1 kg

Maximum capacity [Max] : 1110 g

Readability [d] : 0.01 mg

Standard repeatability [5% Max] : 0.04 mg

Standard repeatability [Max] : 0.05 mg

Permissible repeatability : 0.08 mg

Electric compensation range : -10 g – +110 g

Stabilization time : 30 s

Adjustment: external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions: ø60 mm

Object diameters : 5 – 94 mm

Weighing device dimensions : 690×710×1060 mm

Electrical parameters:

Power supply : 100 – 240 V AC 50/60 Hz

Environmental conditions:

Operating temperature : +15 – +30 °C

Storage temperature : -20 – +50 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 12 h (3% / 4 h)

Datasheet
