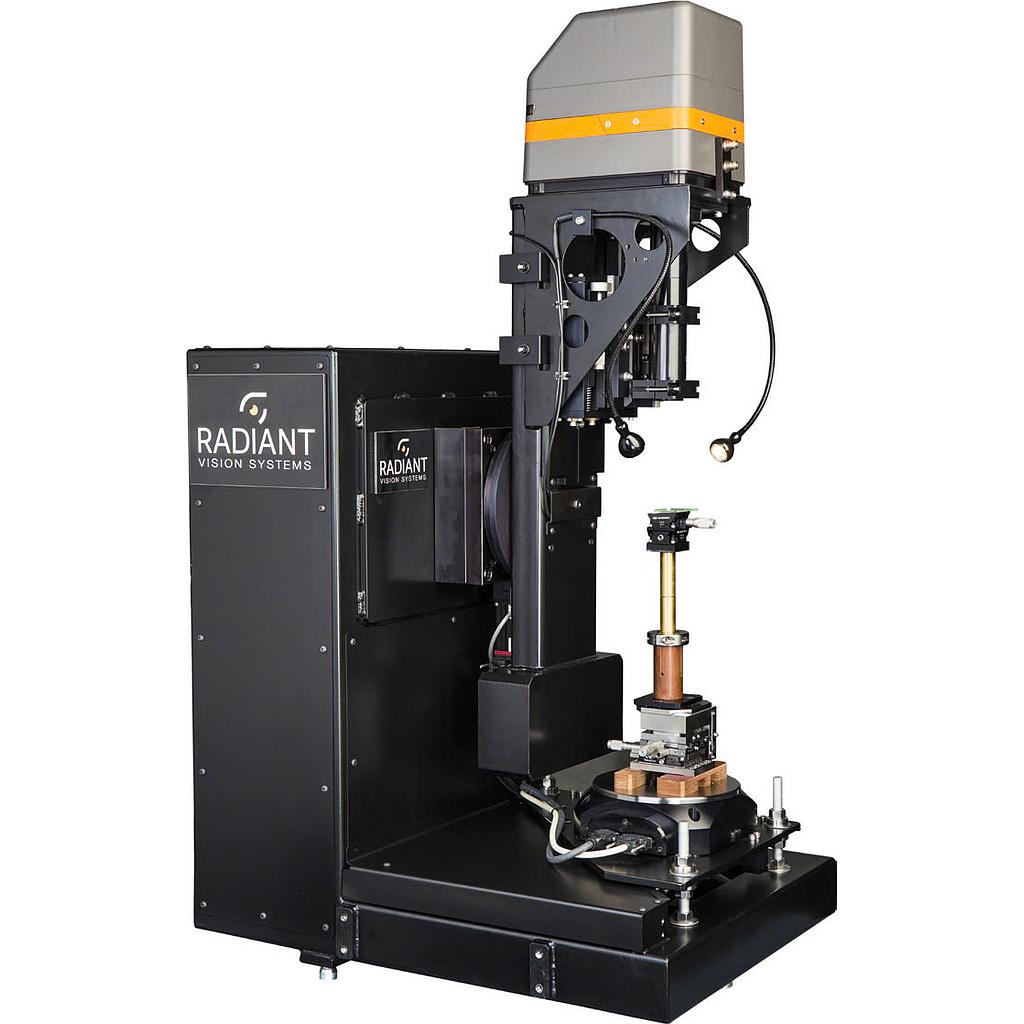

Radiant SIG-400 Source Imaging Goniometer® Generation 4 (592 x 592; 1072 x 1072; > 60 dB)

Optical Specifications and Capabilities:

Sensor Type: CCD, Interline, Temperature Stabilized, Cooled to +5° C

System Dynamic Range: > 60 dB

Resolution: 592 x 592; 1072 x 1072

Standard Field of View (FOV) 2.3 mm, 4.7 mm, 9.1 mm,13 mm, 25 mm and 54 mm; 4.9 mm, 10 mm, 20 mm, 28.7 mm,57 mm and 122 mm

Extended FOV: Micro(with SIG-400MF20 option): 0.6 mm; 1.3 mm

Extended FOV: Micro(with SIG-400MF10 option): 1.1 mm; 2.4 mm

SIG-400EF option: 98 mm; 212 mm

Color Measurement: CIE 1931 matched XYZ filters

Neutral Density Filters: ND 0, 1, 2, 3, 4, and 5 standard

Measurement Capability: Luminance, luminous intensity; Color: CCT; CIE x,y; u’,v’; DE

Mechanical Specifications

Overall Size: 71 cm x 56 cm x 125 cm

Operating Footprint: 74 cm x 127 cm

Azimuth Motion: 0° to 360°

Inclination: ± 140°

Angular Step Size: 0.10° minimum for both azimuth motion and inclination

Run Out: ± 0.015 mm mechanical-optical-software run out

Weight: 130 kg

Construction: Welded steel frame for thermal stability and rigidity

Datasheet
