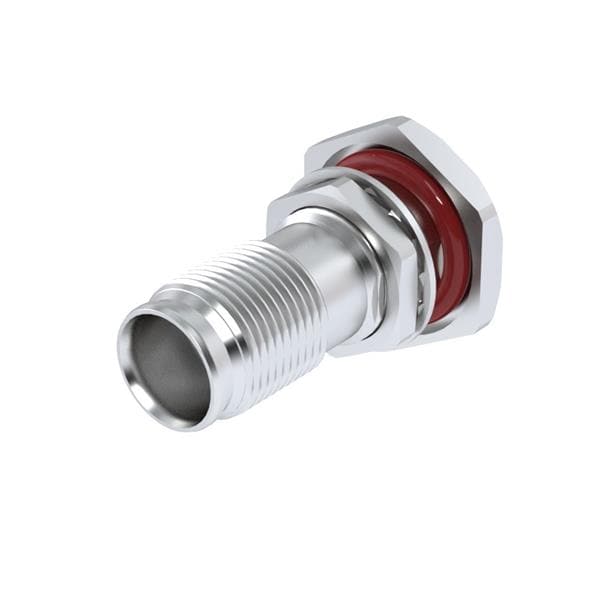

Radiall R180301007W Connectors NEX10 / BULKHEAD JACK PANEL SEAL SOLDER TYPE CABLE.085
ManufacturerRadiall(View more products from this manufacturer)
ModelR180301007W
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
IP Rating: IP67
Impedance: 50 Ohms
RF Series: NEX10
Body Style: Bulkhead
Cable Type: RG-405, Belden 1671A
Orientation: Straight
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 100 Cycle
Mounting Style: Bulkhead
Contact Plating: Silver
Contact Material: Beryllium Copper
Maximum Frequency: 20 GHz
Termination Style: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
