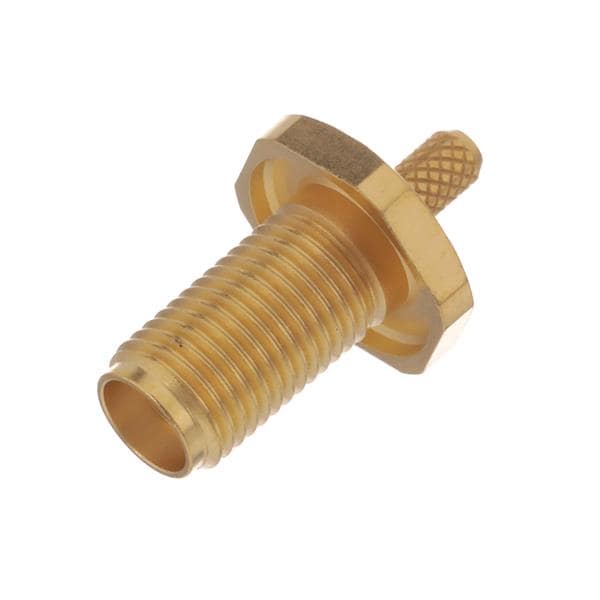

Radiall R125322030W Connectors SMA / STRAIGHT BULKHEAD JACK PANEL SEAL CRIMP TYPE - CABLE 2.6/50 D
ManufacturerRadiall(View more products from this manufacturer)
ModelR125322030W
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMA
Body Style: Straight
Cable Type: K02252D, RD-316
Body Finish: Gold
Orientation: Straight
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Style: Bulkhead
Voltage Rating: 350 V
Contact Plating: Gold
Maximum Frequency: 12.4 GHz
Termination Style: Crimp
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
