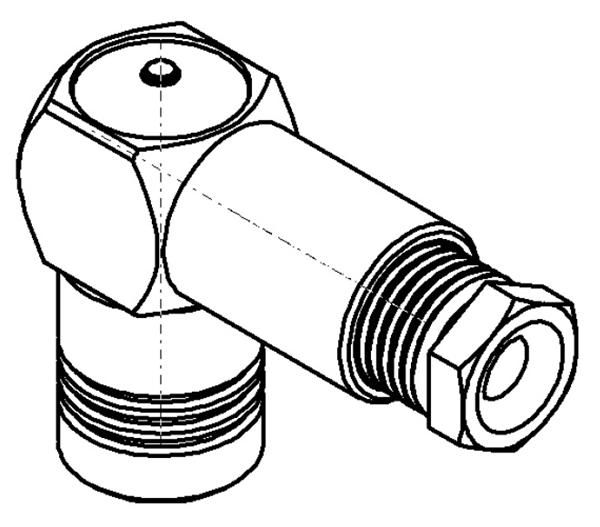

Radiall R114163000 Connectors SMB / RIGHT ANGLE PLUG CLAMP TYPE CABLE 2/50 S
ManufacturerRadiall(View more products from this manufacturer)
ModelR114163000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Impedance: 50 Ohms
RF Series: SMB
Cable Type: RG-178, 178 LC, 196, KX21
Body Finish: Gold
Orientation: Right Angle
Unit Weight: 6 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500
Voltage Rating: 250 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 4 GHz
Termination Style: Clamp
Coupling Mechanism: Slide On
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
