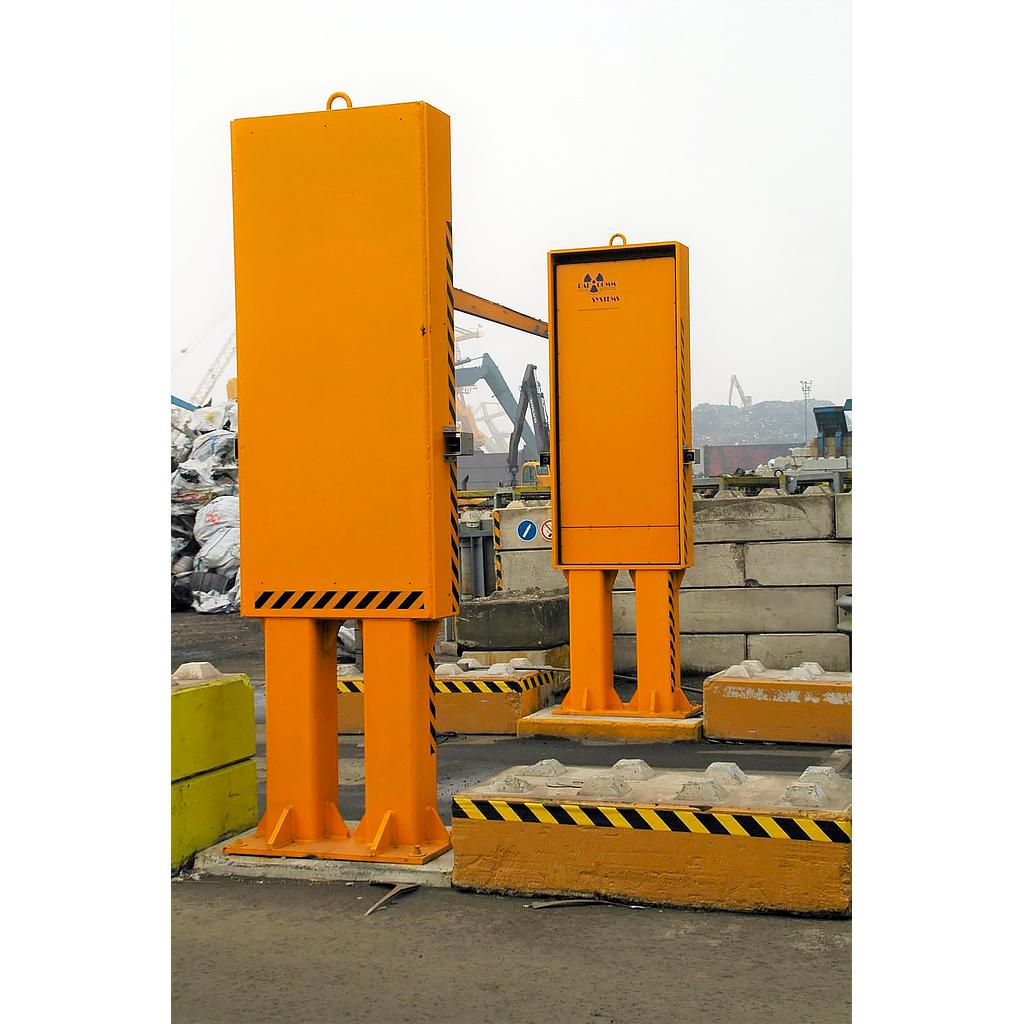

RadComm RC4069R Vehicle radiation detection systems (1.6 μCi)

System Size (in^3):4,216

System Size (L):69

PER/Panel Size (in^3):2,108

PER/Panel Size (L):34.5

# of PMTs/panel:1

Detection Sensitivity *Unshielded (Shielded Source): 1.6 μCi (58mCi)

*Cs-137 point source at 1 meter from the face of the detector. The radiation exposure level is comparable to a 75mm x 150mm Cs-137 lead sealed source buried in 62.4 lbs/ft^3 (1.0 g/cm^3) of scrap.

Detection Method:Polyvinyl Toluene (PVT)

Detector Enclosure Rating:NEMA 4

Energy Range: 20KeV to 3.0 MeV

External Operating Temperature:-4°F to 131°F (-20°C to 55°C)

Data Output Fields:Date, time, occupancy duration, unit ID, alarm condition, background count, gamma count

Data Output:XML, ASCII

Languages Supported:English, Czech, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Finnish

Agency Compliance:ANSI N42.35 / IEC 62244, ANSI N42.42 / IEC 62755

Accessories:

Camera

External Alarm

Supervisory Software

Neutron Detection:Yes, optional
