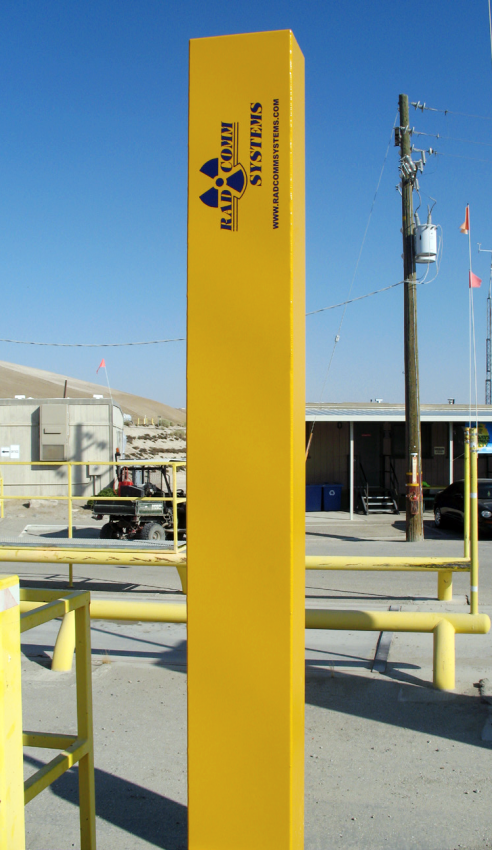

RadComm RC2034WR-2 Vehicle radiation detection systems (2.8 μCi; 20KeV to 3.0 MeV)

System Size (in^3):2,108

System Size (L):34.5

PER/Panel Size (in^3):1,054

PER/Panel Size (L):17.25

# of PMTs/panel:1

Detection Sensitivity *Unshielded (Shielded Source): 2.8 μCi (90mCi)

*Cs-137 point source at 1 meter from the face of the detector. The radiation exposure level is comparable to a 75mm x 150mm Cs-137 lead sealed source buried in 37.4 lbs/ft^3 (0.7g/cm^3) of scrap.

Detection Method:Polyvinyl Toluene (PVT)

Detector Enclosure Rating:NEMA 4

Energy Range: 20KeV to 3.0 MeV

External Operating Temperature:-4°F to 122°F (-20°C to 50°C)

Data Output:Date, time, alarm report, # of scans, alarm condition

Remote connectivity: Remote diagnostics, optional Supervisory software

Languages Supported:English, Spanish, French

Accessories:

Camera

External Alarm

Supervisory Software

Datasheet
