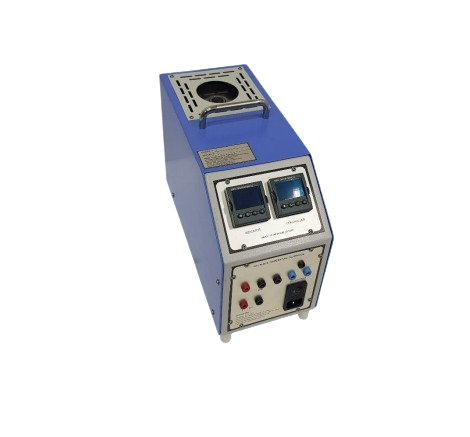

R&D Instruments NTC(i) Negative Dry Block Temperature Calibrator (-35~123°C, ±0.4°C; With Measurement Facilities)

Specifications

Range: -35 from ambient to 123°C

(Eg.: -10°C @ Ambient 25°C)

Resolution: 0.01°C upto 99.9°C & 0.1°C above 99.9°C

Accuracy: ±0.4°C

Stability: ±0.1°C

Stabilization Time: 10 minutes

Units: °C / °F Switchable

Display: LED Green

Heating Time (ambient to 123°C): 25 minutes (approx.)

Cooling Time (ambient to negative max.): 30 minutes (approx.)

Switch Test Facility: Provided

Transmitter Power Supply: Provided

Block Diameter: 25.6 mm

Block Immersion: 120 mm

Insertion Tube Diameter: 25.4 mm

Insertion Tube Length: 120 mm

Insertion Tube Depth: 110 mm

Power Supply: 230V AC ±2.5 / 50 Hz

Dimensions: 153 x 240 x 340 mm

Weight: 7 Kgs

Standard Delivery

Instrument: 1 no.

Power Cable: 1 no.

Carrying Case: 1 no.

Test Lead: 1 no.

Insertion Tube: 1 x 1/4" x 1 x 12.5 mm

Insertion Tool: 1 no.

Spare Fuse: 500 mA, 5A – 2 nos. each

User Manual: 1 no.

Traceable Calibration Certificate Standard
