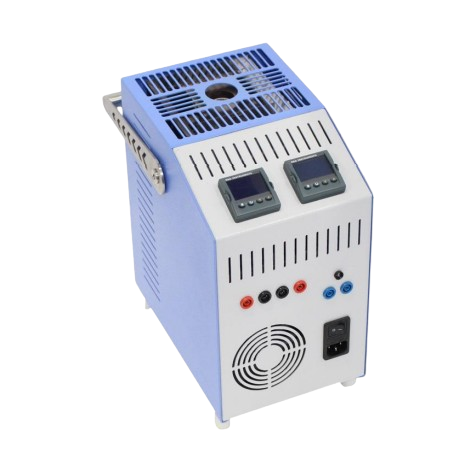

R&D Instruments 650 TH(i) Dry Block Temperature Calibrator (35 ~650°C; Có chức năng đo lường)

Range at 23°C: 35 to 650°C

Resolution: 0.1°C

Display Accuracy @50°C: ±0.2°C

Display Accuracy @650°C: ±0.5°C

Bath Stability @50°C: ±0.03°C

Bath Stability @650°C: ±0.05°C

Stabilisation Time: 20 minutes

Radial Uniformity @50°C: ±0.02°C

Radial Uniformity @650°C: ±0.04°C

Axial Uniformity at 40 mm @50°C: ±0.05°C

Axial Uniformity at 40 mm @650°C: ±0.5°C

Heating Time (50 to 650°C): 20 minutes

Cooling Time (650 to 100°C): 35 minutes

Units: °C / °F Switchable

Operating Conditions: 0 to 50°C, 0 to 90% RH (non-condensing)

Environmental Conditions: 18 to 28°C

Display: LCD

Power Supply: 230V AC ±5% / 50Hz, 1800 W

Insert Diameter: 25.3 mm

Insertion Tube Depth: 150 mm

Instrument Dimension: 175 x 305 x 260 mm (W x H x D)

Instrument Weight: 10 kg
