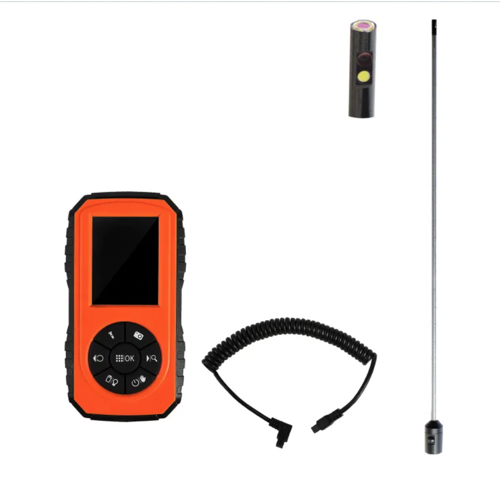

Qyteco QY20D Dual Lens Endoscope (1280*720, 4CM, 5.5MM)

Camera Probe:

Camera Lens: CMOS

Resolution: 1280*720

Viewing Angle: 65°

Camera Focal Distance: 4CM

Depth of Field (DOF): 1.5CM~20CM

Front View Light Source: 6 LEDs for 1M Irradiation Distance

Side View Light Source: 1 big LED for 1M Irradiation Distance

Camera Probe Outer Diameter: 5.5MM

Insertion Length: 60cm

Metal Part Length: 40MM

Waterproof Level: IP67 (Probe Only)

Work Time:

Continuous working time: about 5 Hours

Working Temperature:

Working Temperature: -10°~60°

Packing

All the inspection camera kit is standard packed with tool case except the 89 series with economical packing by paper box as standard and tool case optional. Special requirements should be mentioned in order.

APPLICATIONS

Automobile service, Aviation maintenance, Archaeological expedition, Lab observation, Search and rescue, Oil&Gas industry inspection, Equipment or Furnishing installation, etc.

Notice:All graphics and specifications are subjuct to minor change without prior Notice. All rights reserved.
