Qyteco 4908AL Side View Rigid Camera (800(R.G.B.)X480dot, 9.0mm)

CAMERA PROBE:

Image Sensor: CMOS

Camera Direction: Side view 90°

Diameter of Insertion Tube: 9.0mm

Tube Type: Stainless steel

Insertion Length: 300mm

Tube Material: Stainless Steel

Light Source: 2 high intensity LEDs for 1.5m lighting distance

Effective Pixels: 768x494 (NTSC), 752x582 (PAL)

Mains Battery Charge: Yes

Depth of Field (DOF): 4cm-infinite

Field of View (FOV): 55°

Waterproof Level: IP67 (Probe only)

Battery Capacity: 1500mAh

Work Time: 4 hours

Charge Time: 5 hours

Current Consumption: 260mA

Operation Temperature: -10°~+60°

MONITOR:

Product Dimension: 115.6mm x 74.38mm x 1.43mm

Screen Size: 5'' TFT-LCD

Display Resolution: 800(R.G.B.) x 480 dot

Video Signal Standard: NTSC / PAL

Modulation Mode: FM

Receive Sensitivity: -85dBm (module)

Built-in Li-Battery Capacity: 3300mAh / 5V

Charge Time: 4.5 hours

Work Time: 4.5 hours

Standby Time: 5 hours

Consumption Current: 500mA (MAX.)

Memory: Micro SD Card

Picture Format: .JPG

Video Format: .AVI

Picture/Video Resolution: 800 x 480

Frame Rate: 30 Frame/S

Operation Temperature: 0~+45°C

Storage Temperature: -20~+60°C

Product Description

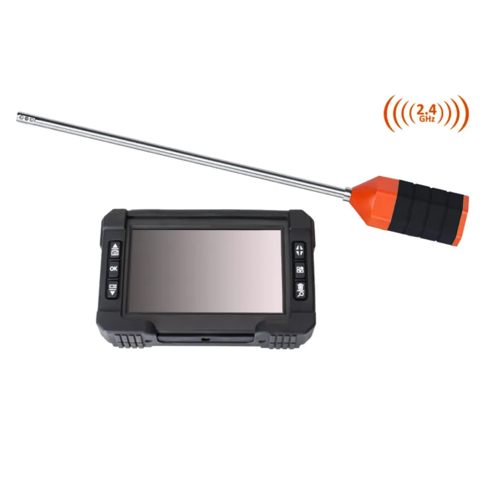

Side view rigid inspection camera with 5inch monitor

This is the new side view inspection camera, the tube is made of wearable stainless steel with optional diameter 9.0mm. The camera, the 2 high intensity LEDs and the stainless steel tube are integrated perfectly to enhance the insertion probe water, gas, desiel and oil proof, the waterproof level is up to IP67.

Applications:

Locating source of water intrusion.

Locating insects or dead rats or corrosion inside cavity walls.

Black mold inspection, insulation levels etc.

Electrical, plumbing, wiring, network/phone and CATV routing.

Construction, property managers and contractors

Small automotive engines and other related inspections.

Gun bore and related inspections.

Motor Inspections.

HVAC duct systems.

Sewer pipe inspections and related plumbing applications.

Avaiation related applications.

Natural gas pipe inspections.

Internal machinery part inspections.

Quality assurance inspections.

Mold and mildew inspections.

Insurance litigation and verification inspections.

Verfication of standards protocols in small and tight areas.

Building appraisal applications
