QUICK QT500 Precision desktop dispenser (500/500/100mm)

Supply Voltage: AC220V（50/60HZ）/1000W

XYZ Axis Operation Range: 500/500/100mm

XYZ Axis Max Operation Speed: 1000/1000/300 （mm/sec）

XYZ Axis Repeat Positioning Accuracy: XY:±5μm/Z:±10μm

XYZ Axis Acceleration: 1.0g/1.0g/0.5g

XYZ Drive Mode: servo motor + high precision lead screw module

Z Axis Load Capacity: 5 kg

Y Axis Load Capacity: 10 kg

Programming: vision guided programming

Visual Positioning System: Camera over 1.3 MP

Light Source: coaxial light source（optional：circular）

Altimetry: Laser altimetry（optional）

Operating temperature: 0～40℃

Conditions humidity: 20％～90％（no condensation）

Dimensions W×D×H: 730*790*680mm

Weight: 140 kg

Features:

Professional dispensing control software to ensure dispensing consistency

Highly rigid one-piece welding frame tested by mechanical analysis

Optional laser height measurement system, height of Zaxis can be automatically calibrated after workpiece is deformed

Optional workpiece heating system to enhance the fluidity of the coating when filling the bottom

Support MES data association

Specular stainless steel process to meet Class 100 dustfree and Class 1000 clean environment standards（QT300S)；

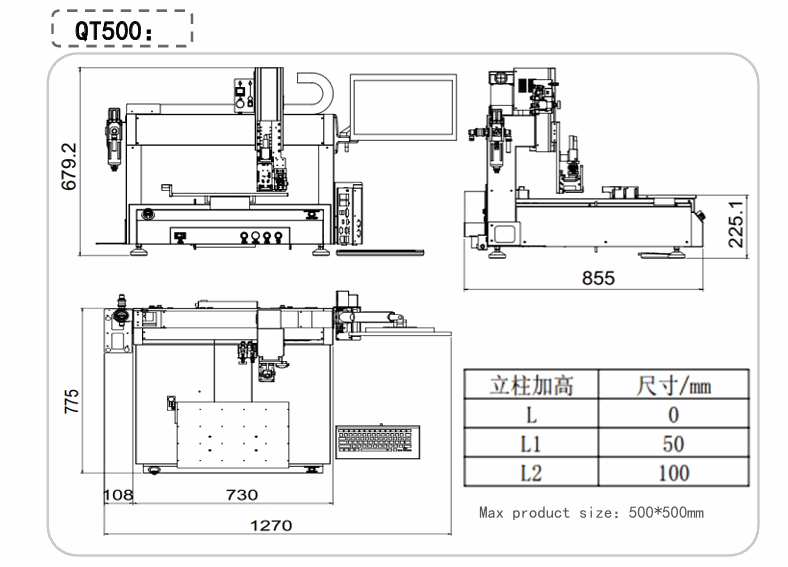

Dimension

Datasheet
